DATOUBOSS 6000W 48V DC to 230V AC Hybrid Solar Inverter 120A MPPT 8500W PV Input Battery Free Operation IP54 Protection BMS for Home Solar & Standalone Power System
DATOUBOSS DT-4860BF 6000VA/6000W Hybrid Solar Inverter with 48V battery and 230V output. Solar input up to 8000W, IP54 housing. Read more →
10%
Discount coupon from the manufacturer
Works on the "Buy from manufacturer" button. This coupon does not apply to AliExpress.
Enter the code in the cart on the manufacturer's website - the discount will be applied to the order.
- 5-year warranty. Long-lasting protection, worry-free use.
- Without VAT Additional value added tax is not charged.
- Free delivery Fast local delivery
DATOUBOSS DT-4860BF 6000VA/6000W Hybrid Solar Inverter with 48V battery and 230V output. Solar input up to 8000W, IP54 housing.
Panels are accepted in the range of 85 to 500 V DC, nominal voltage 300 V, maximum current 27 A. The charge current reaches 120 A, the discharge current 125 A. Two PV inputs are provided, so the array can be divided into two groups.
The inverter works without battery and supports lithium batteries with BMS via RS485. The mains charger is designed for 230 V AC, 50 A and outputs 60 V DC, so the battery is charged quite quickly from the mains or generator.
The case has an IP54 degree of protection and a Class I insulation class: the device is protected against dust and splashes. Operating temperatures: from -10 to +55 °C.

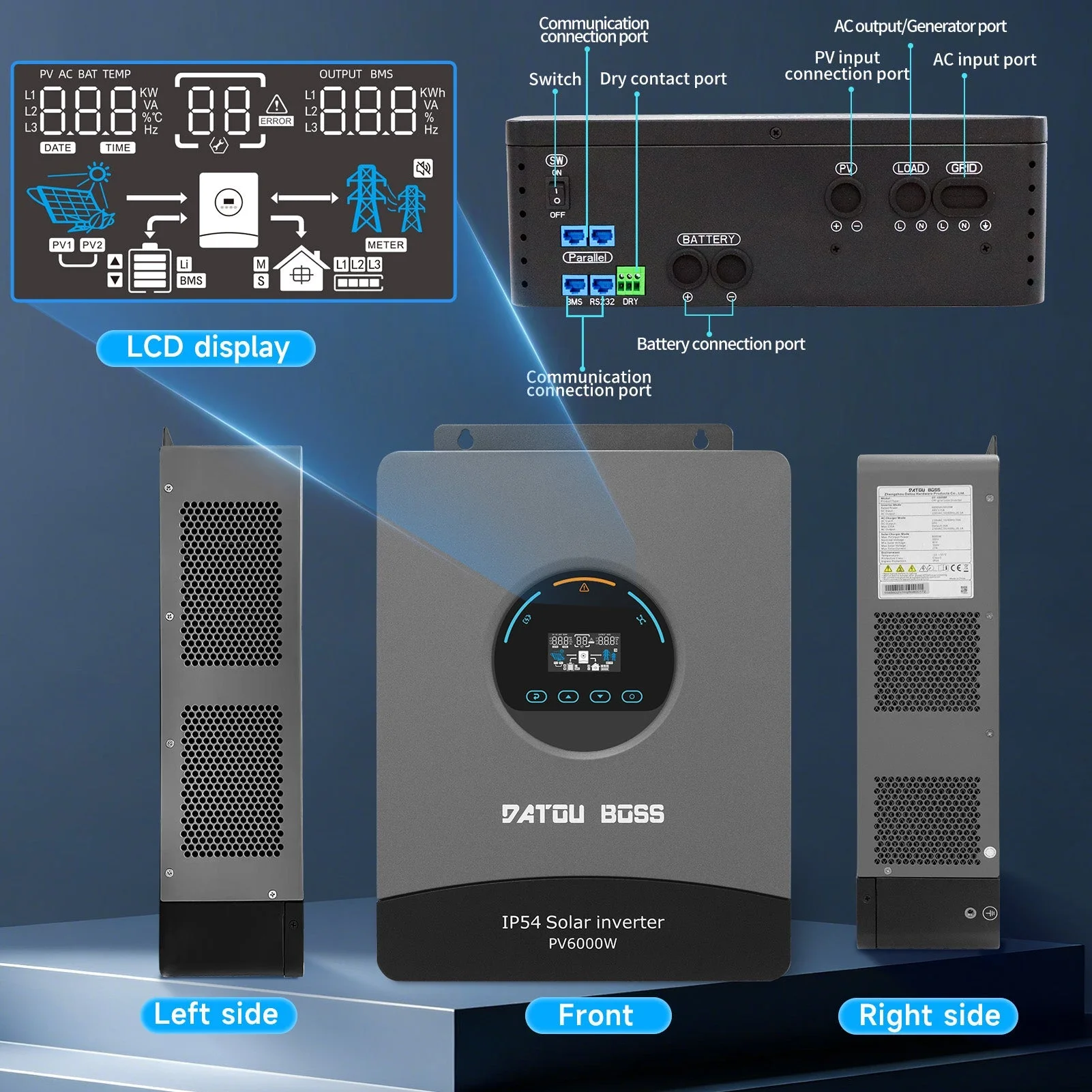

Control is performed on touch buttons with a round LCD display. There are RS232 ports, BMS, dry contact and output for parallel connection. Protection covers over voltage, overload and short circuit.

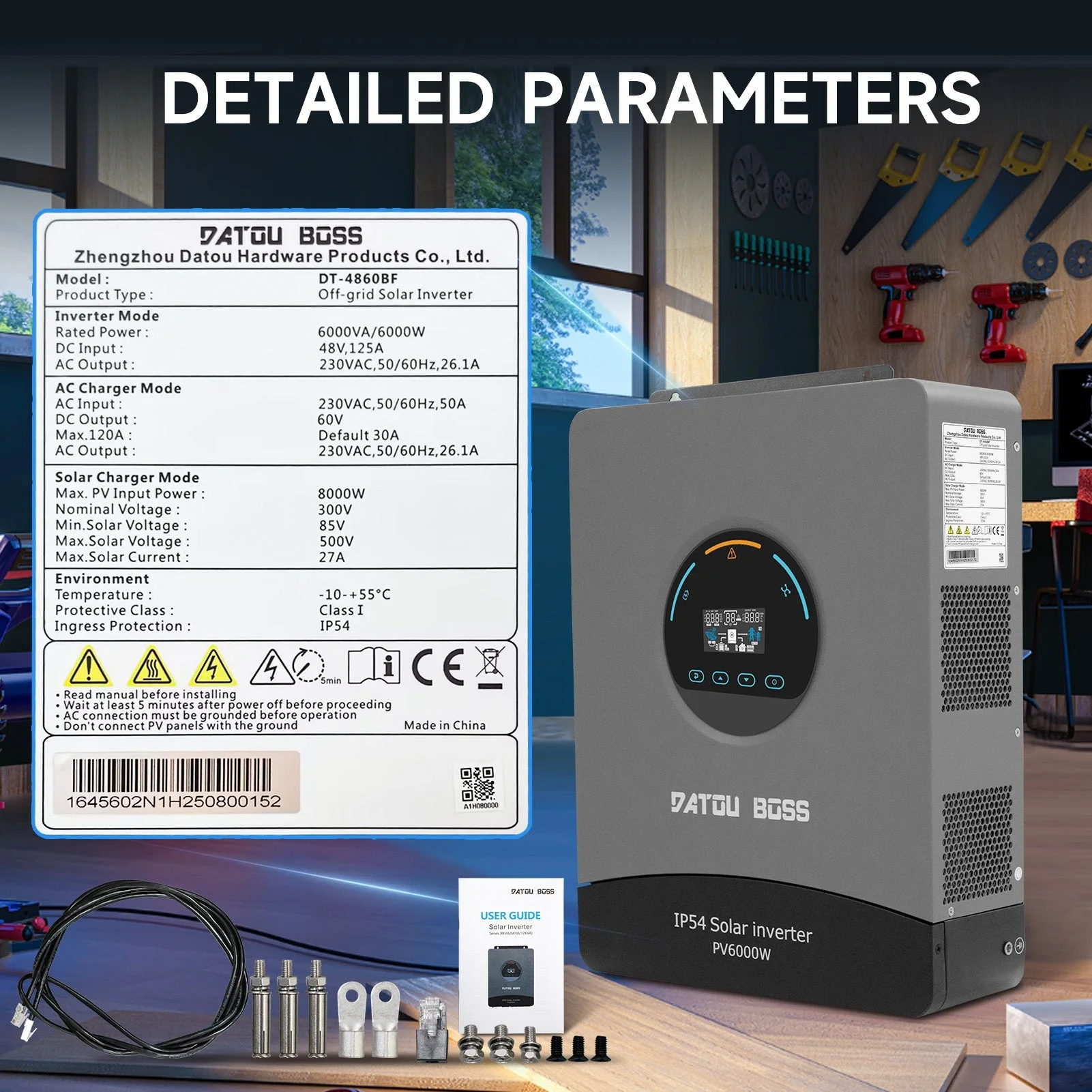

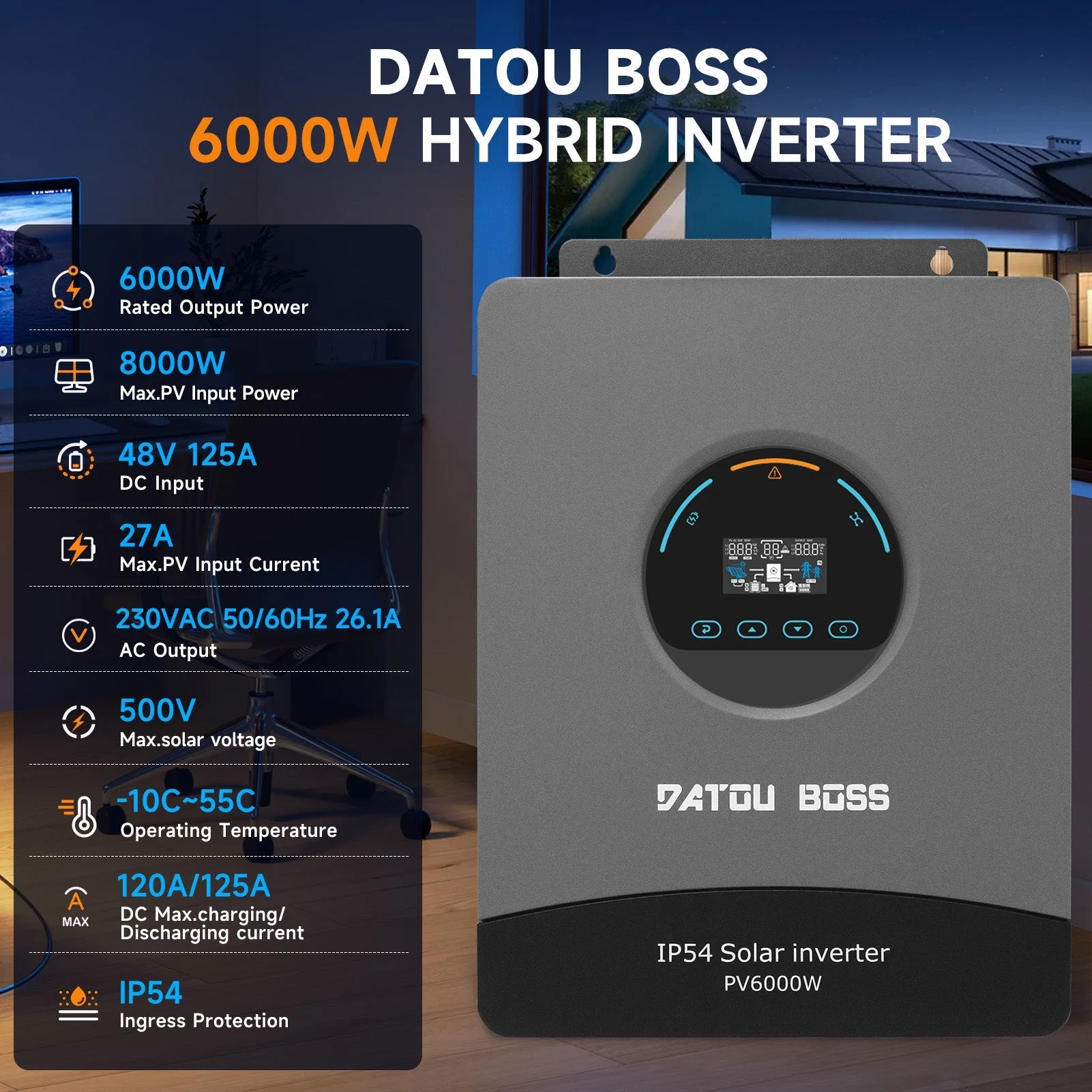

| Producer | DATOUBOSS |
| Article | SP-DT-4860BF-A-EU |
| Model | DT-4860BF |
| Type | Standalone hybrid solar inverter, pure sine wave |
| Power | 6000 VA / 6000 W |
| Input voltage (battery) | 48 V DC, 125 A |
| Output voltage | 230 V AC, 50/60 Hz, 26.1 A |
| PV input | up to 8000 W, 2 inputs (PV1/PV2) |
| MPPT | 85–500 V DC, nominal 300 V |
| Max. PV voltage | 500 V DC |
| Max. PV current | 27 A |
| Charge current | up to 120 A (default 30 A) |
| Discharge current | up to 125 A |
| AC input | 230 V AC, 50/60 Hz, 50 A |
| DC charging output | 60 V |
| Display | round LCD display, touch buttons |
| Ports | RS232, BMS, dry contact, parallel connection |
| Protection | overvoltage, overload, short circuit |
| Degree of protection | IP54 |
| Protection class | Class I |
| Temperature range | from -10 to +55 °C |
| Work without batteries | Yes |
