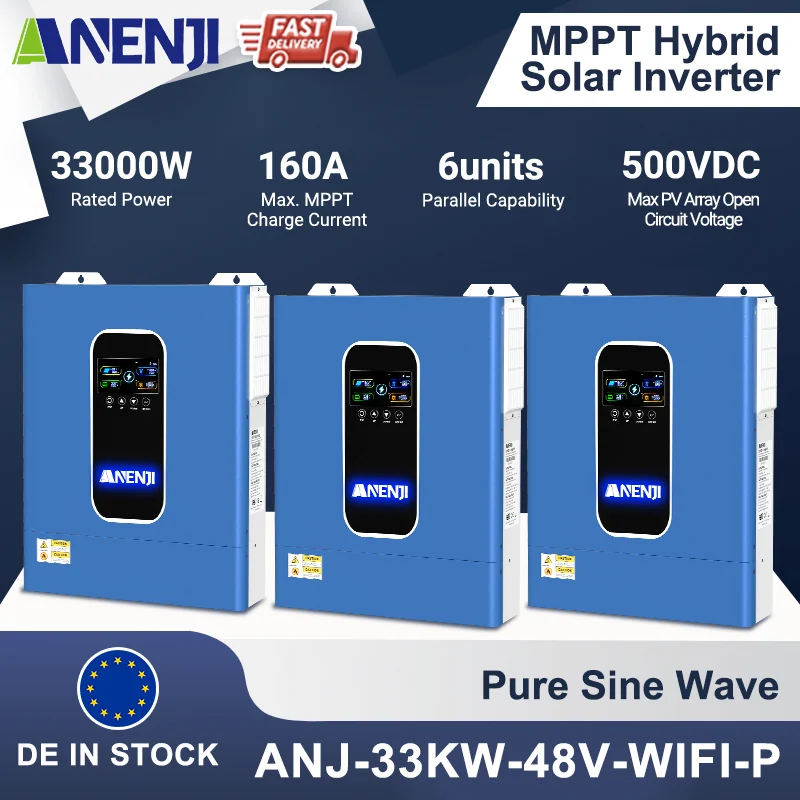

Anenji Hybrid Inverter 33kW 48V 3 Phase Parallel Wi-Fi
Hybrid inverter ANJ-33KW-48V-WIFI-P for 33 kW, battery 48 V, output 230 V. Read more →
- 5-year warranty. Long-lasting protection, worry-free use.
- Without VAT Additional value added tax is not charged.
- Free delivery Fast local delivery
Hybrid inverter ANJ-33KW-48V-WIFI-P for 33 kW, battery 48 V, output 230 V.
MPPT charge current up to 160 A, maximum no-load voltage at PV input 500 V. Operating range from 60 to 500 V.
Up to 6 blocks are combined in parallel, together up to 198 kW. This is the level of a small production or commercial facility, not an ordinary house.
The form of the output voltage is a pure sinusoid.

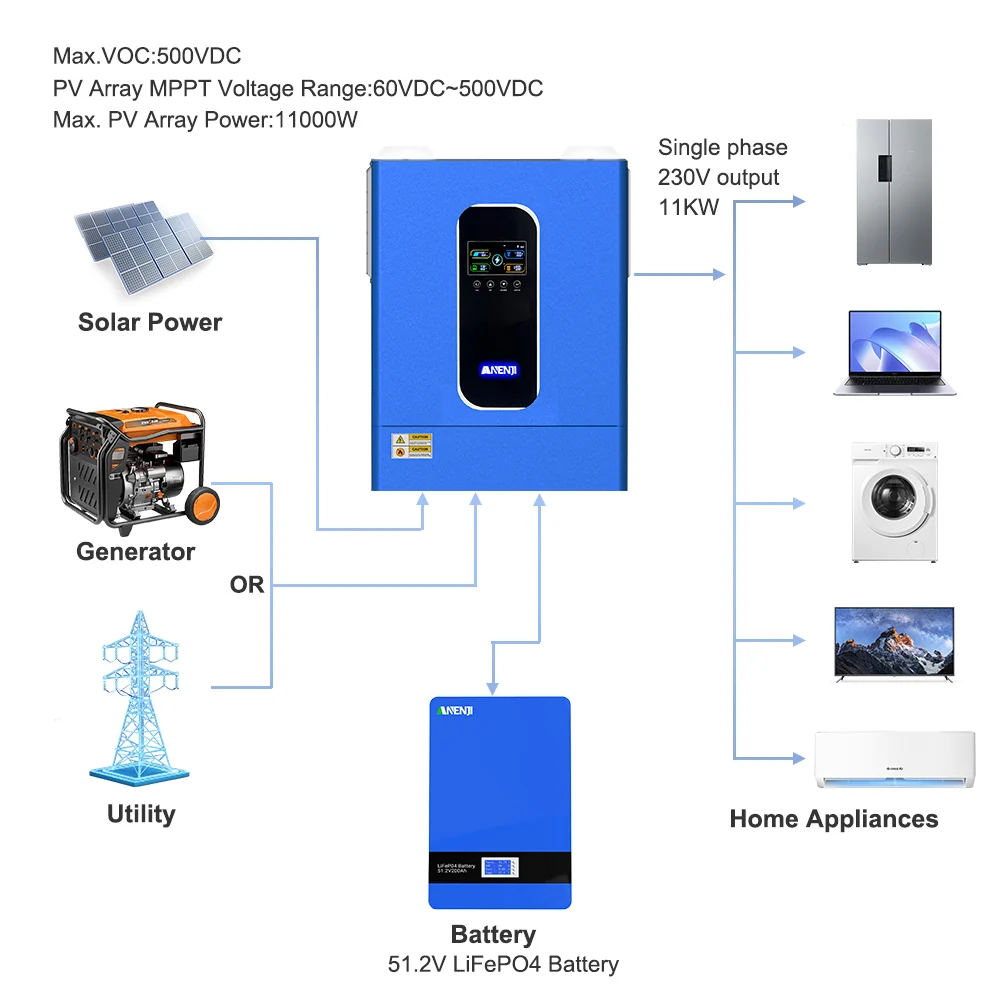

Sources: panels, generator, network and battery 51.2 V. Switching is automatic.
Such power requires a battery with a high discharge current. At 48 V and 33 kW, the current reaches 690 A, so one unit will not cope: an assembly of several parallel batteries is required.
Warehouse in Germany.
| Producer | Anenji |
| Article | ANJ-33KW-48V-WIFI-P |
| Type | Hybrid inverter |
| Power | 33 kW |
| Capacity | 33000 W |
| Battery voltage | 48 V |
| Voltage type | Low voltage (48 V) |
| Output voltage | 230 V AC, 1 phase |
| The shape of the output voltage | Pure sine wave |
| Max. charge current | 160 A |
| MPPT voltage range | 60–500 V DC |
| Max. PV voltage | 500 V DC |
| Parallel work | up to 6 pcs. (up to 198 kW) |
| Connection | Wi-Fi (built-in) |
| Composition | Germany |
