Anenji hybrid inverter, 12 kW, 48 V, split phase, up to 6 pcs. in parallel
ANJ-12KW-110V-W 12KW hybrid inverter, 48V battery. 120/240V output, single phase or split phase. Read more →
- 5-year warranty. Long-lasting protection, worry-free use.
- Without VAT Additional value added tax is not charged.
- Free delivery Fast local delivery

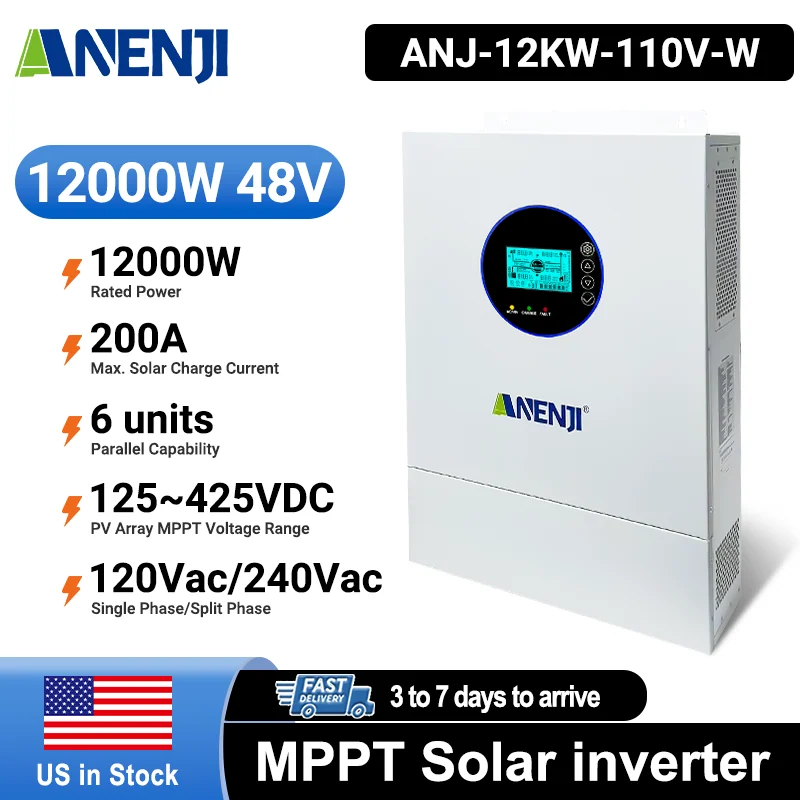

ANJ-12KW-110V-W 12KW hybrid inverter, 48V battery. 120/240V output, single phase or split phase.

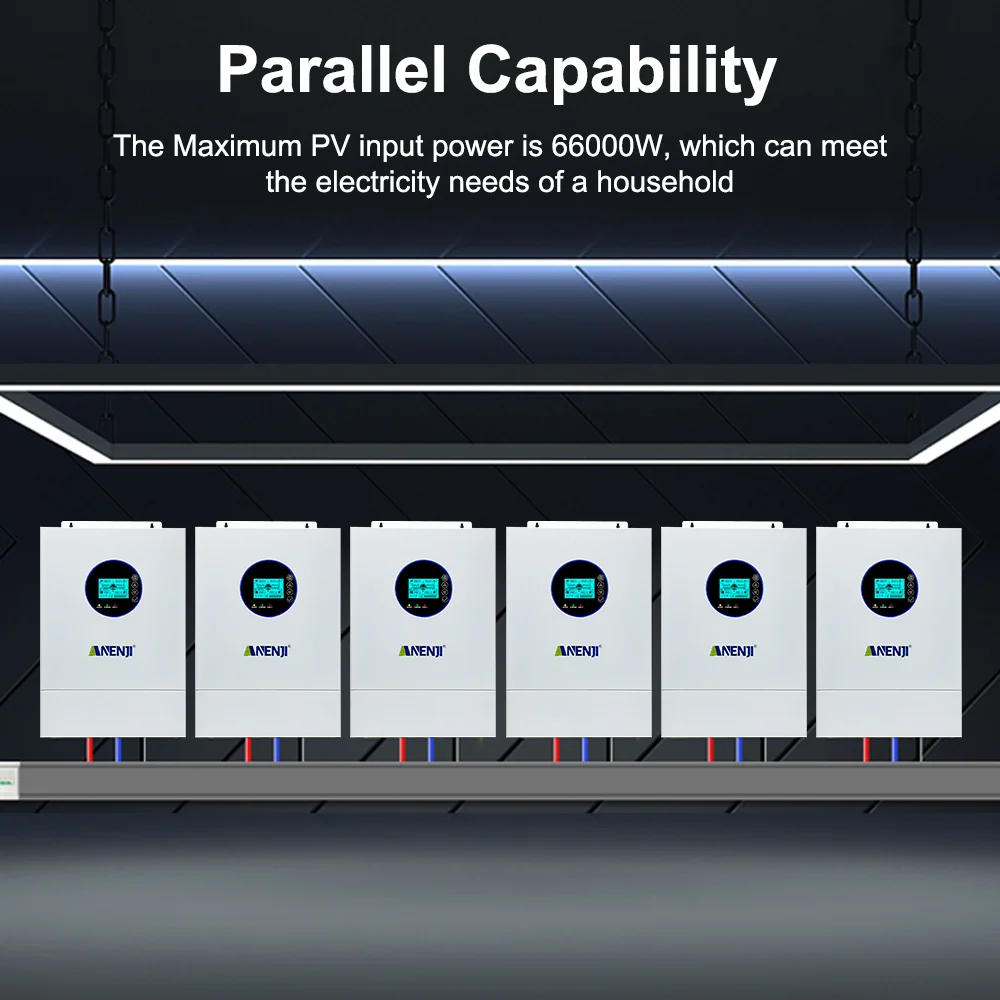

200 A MPPT, PV voltage range from 125 to 425 V. Up to 6 units can be connected in parallel, together up to 72 kW and 66 kW panels.
120/240 V output is American standard. This model is not suitable for Europe with a 230 V network.
A split phase is required for 240 V equipment: powerful pumps, dryers, welding machines. Common 120V household appliances operate on the same system.

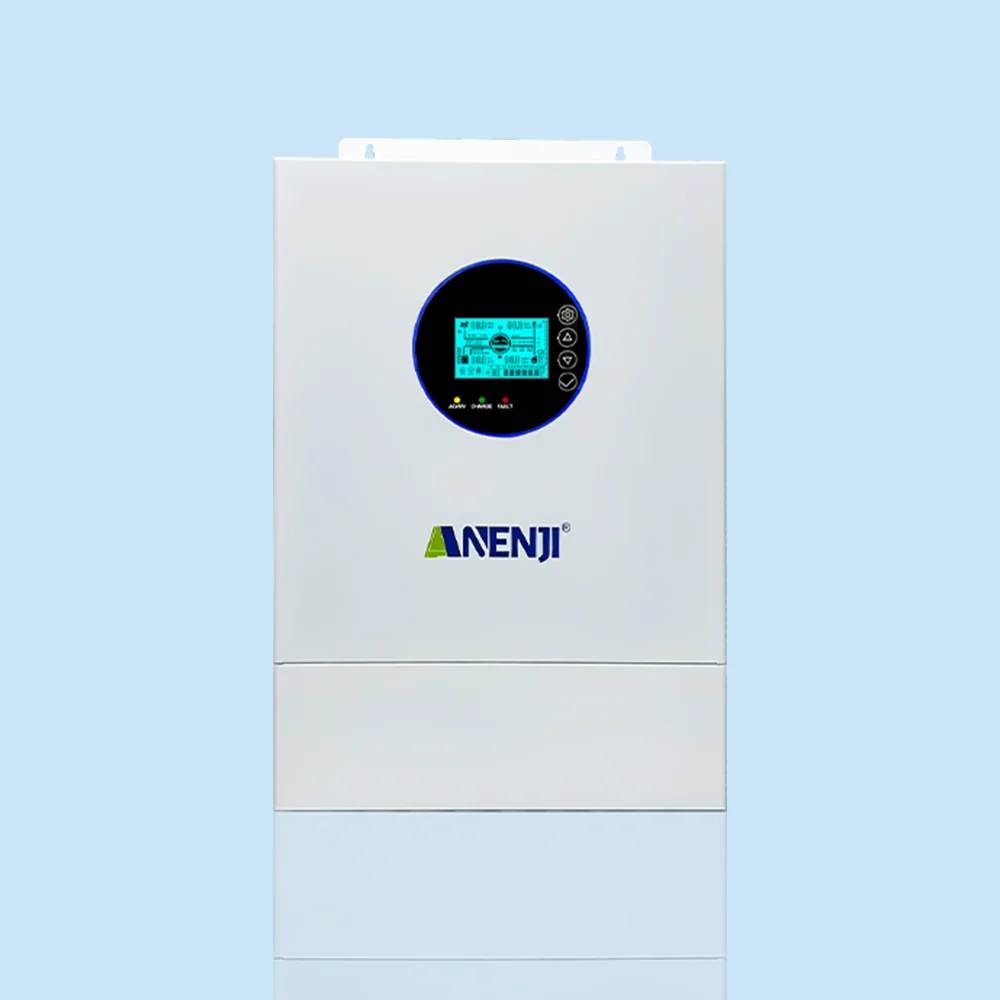

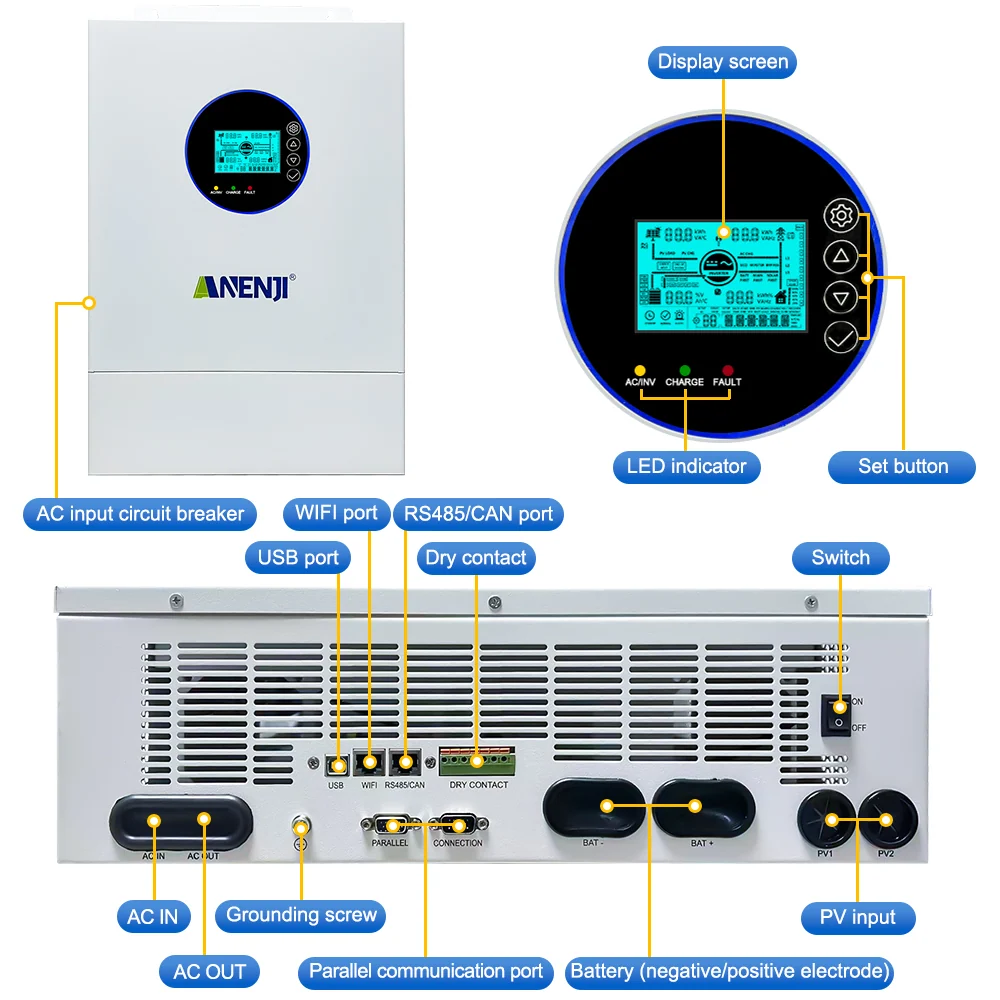

The case is white, wall mounted. Below are the AC input and output, circuit breakers, PV input, battery terminals, grounding, USB, RS485/CAN, Wi-Fi and parallel operation ports.
Stocked in USA, 3-7 day delivery.
| Producer | Anenji |
| Article | ANJ-12KW-110V-W |
| Type | Hybrid inverter |
| Power | 12 kW |
| Capacity | 12000 W |
| Battery voltage | 48 V |
| Voltage type | Low voltage (48 V) |
| Output voltage | 120 / 240 V AC (single phase / split phase) |
| MPPT voltage range | 125–425 V DC |
| Max. charge current | 200 A |
| Parallel work | up to 6 pcs. (up to 72 kW) |
| Ports | USB, RS485/CAN, Wi-Fi, parallel port, dry contact |
| Protection | Automatic machines at the AC entrance |
| Assembling | Wall |
| Composition | USA (3-7 days delivery) |
