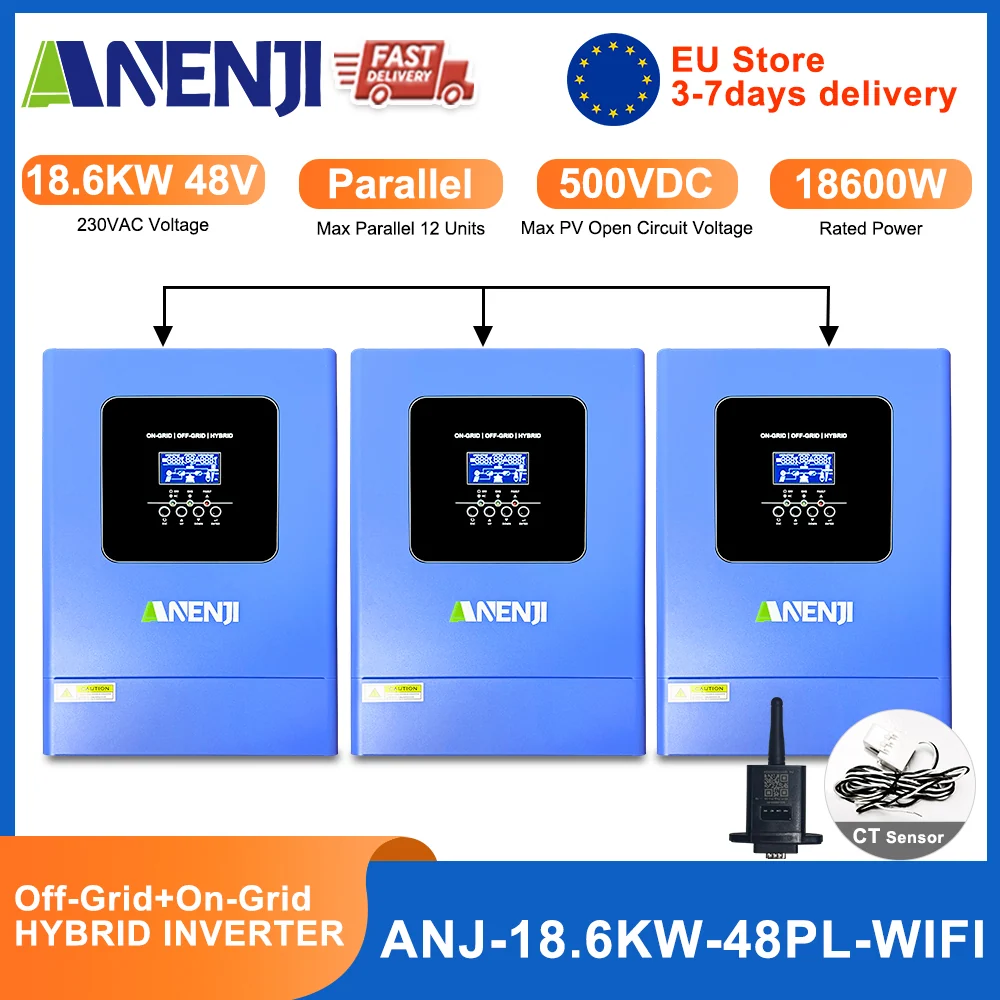

Anenji Hybrid Inverter 18.6kW 48V 3 Phase Parallel Wi-Fi
18.6 kW hybrid inverter, 48 V battery, 230 V output. The total power is obtained by connecting the blocks in parallel: there can be up to 12 of them in one system. Read more →
- 5-year warranty. Long-lasting protection, worry-free use.
- Without VAT Additional value added tax is not charged.
- Free delivery Fast local delivery
18.6 kW hybrid inverter, 48 V battery, 230 V output. The total power is obtained by connecting the blocks in parallel: there can be up to 12 of them in one system.

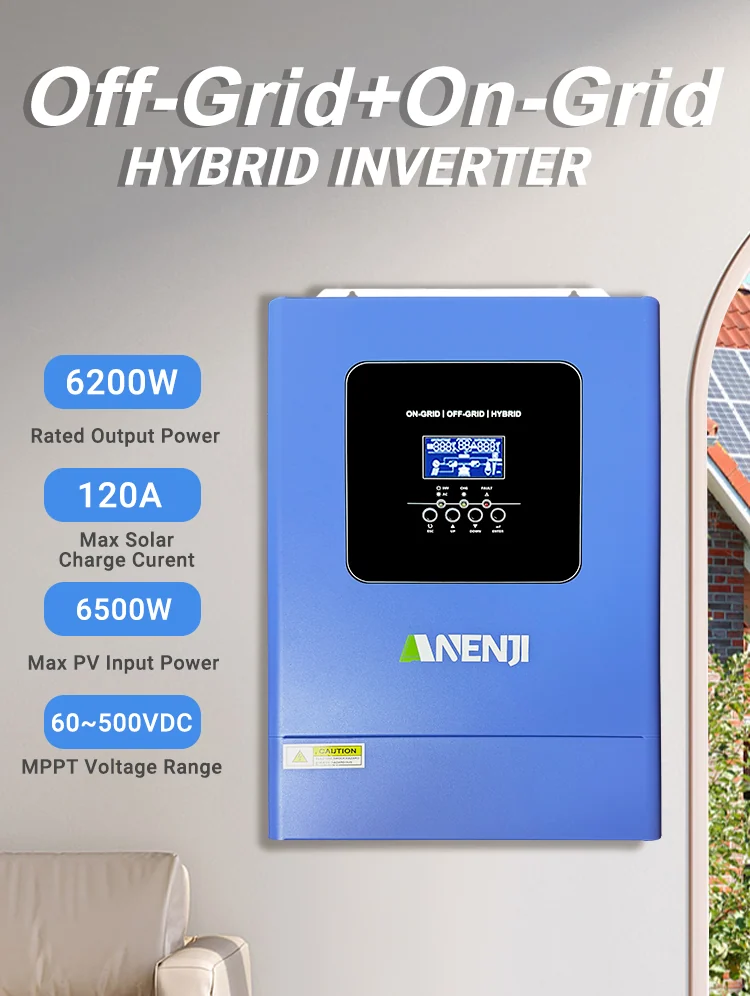

Each block is designed for 6200 W, 120 A of charge current and 6500 W of panels. The MPPT voltage range is from 60 to 500 V.
The maximum no-load voltage at the PV input is 500 V.
A CT current sensor and a Wi-Fi module are included.

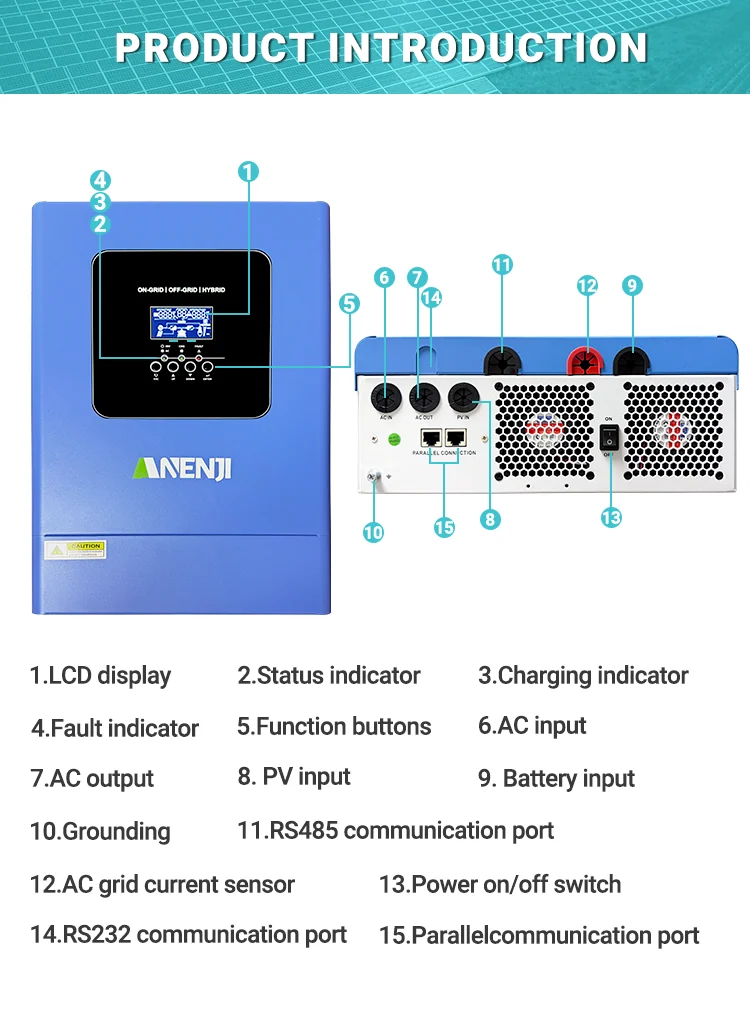

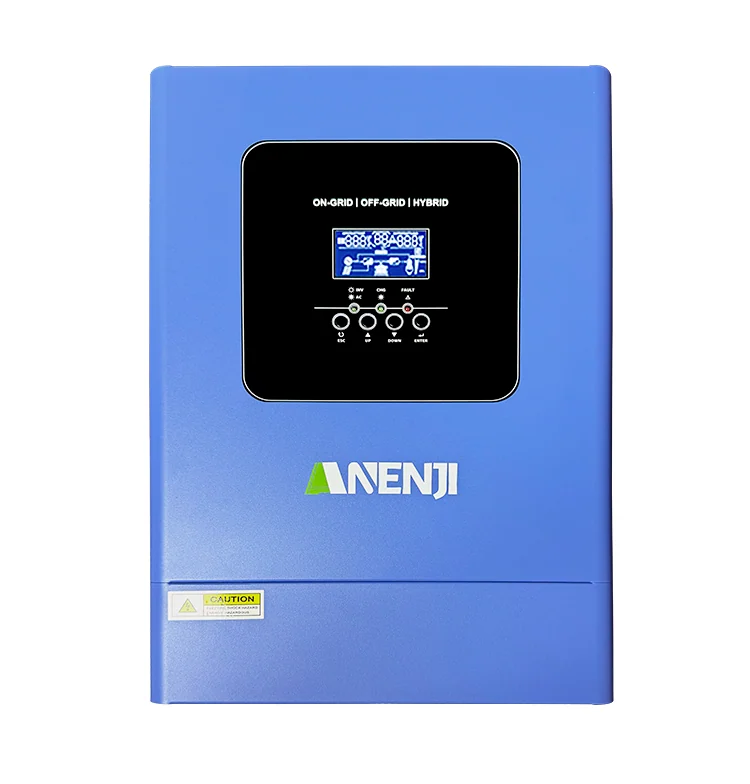

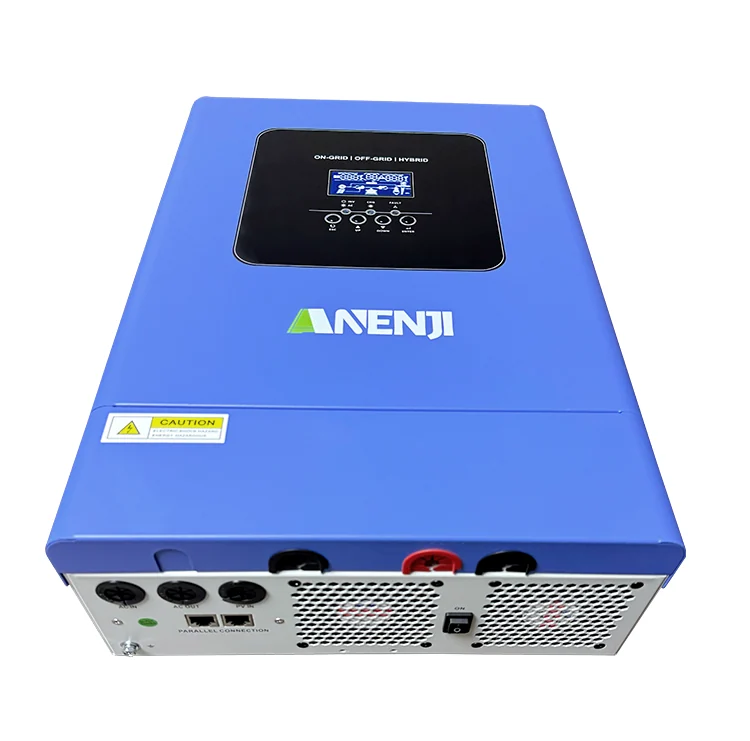

The front panel has an LCD and four indicators: status, charge, error and power. Bottom ports: AC input and output, PV inputs, battery terminals, ground, RS485, RS232, parallel operation port, mains current sensor and power toggle switch.
Warehouse in the EU, delivery 3-7 days.
| Producer | Anenji |
| Article | ANJ-18.6KW-48PL-WIFI |
| Type | Hybrid inverter |
| Power | 18.6 kW (system) |
| Capacity | 6200 W per block |
| Battery voltage | 48 V |
| Voltage type | Low voltage (48 V) |
| Output voltage | 230 V AC |
| Parallel work | up to 12 pcs. |
| Max. PV capacity | 6500 W per block |
| MPPT voltage range | 60–500 V DC |
| Max. PV voltage | 500 V DC |
| Max. charge current | 120 A per block |
| Modes | On-grid and off-grid |
| Connection | Wi-Fi (module), RS485, RS232 |
| Ports | Mains current sensor, parallel operation port, grounding |
| Complete set | CT current sensor, Wi-Fi module |
| Composition | EU (3-7 days delivery) |
| Price | €843.54 |
