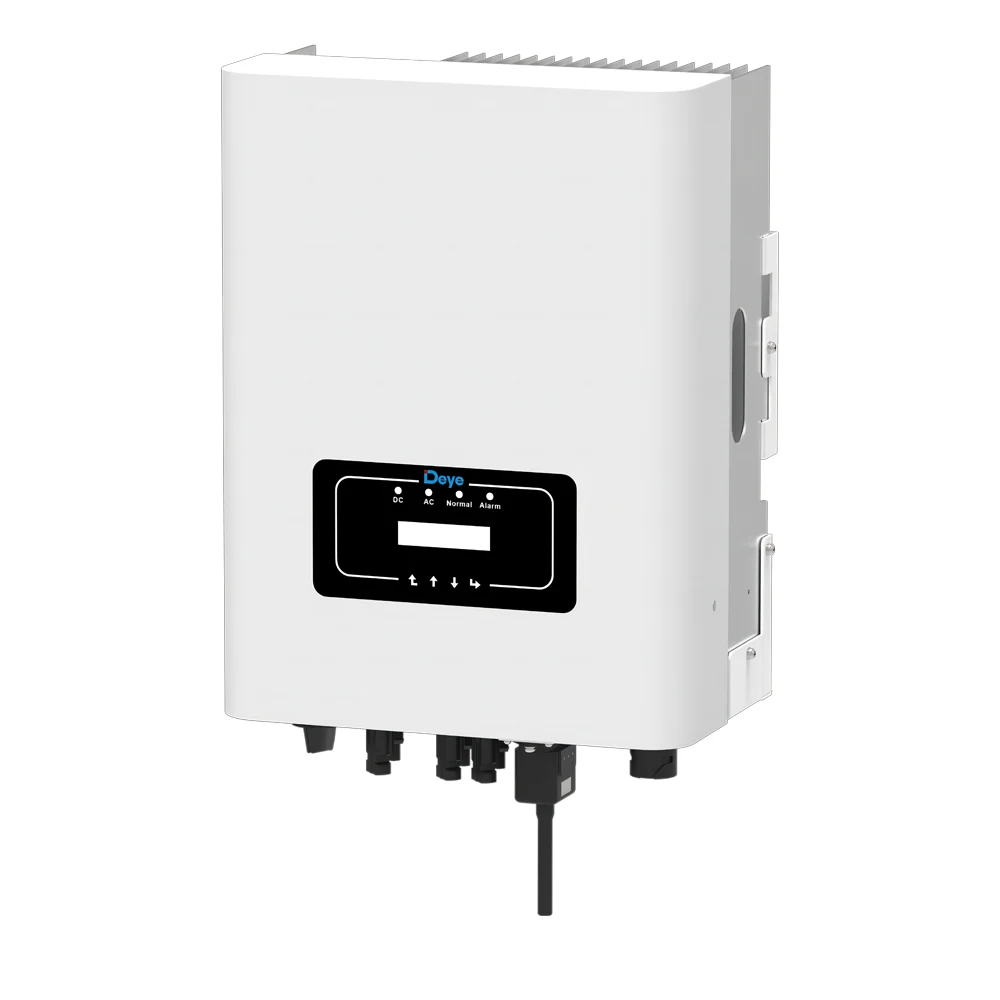

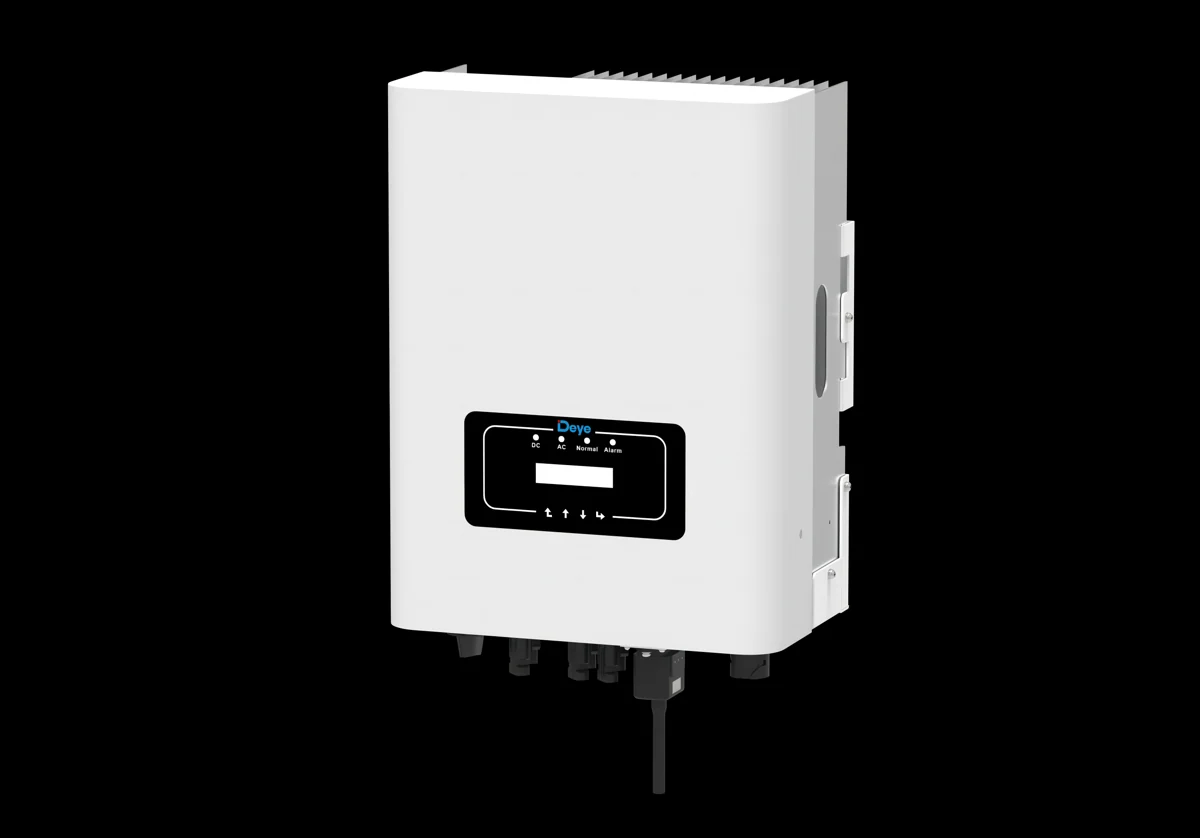

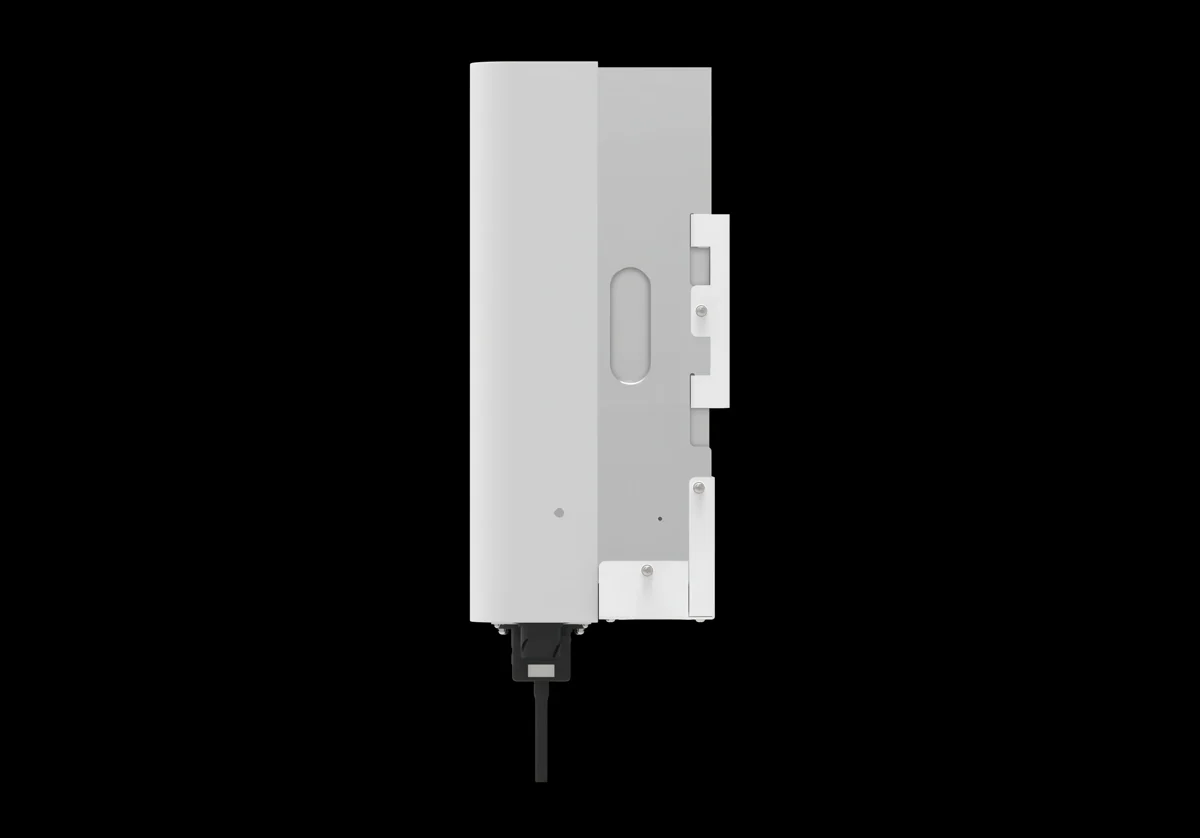

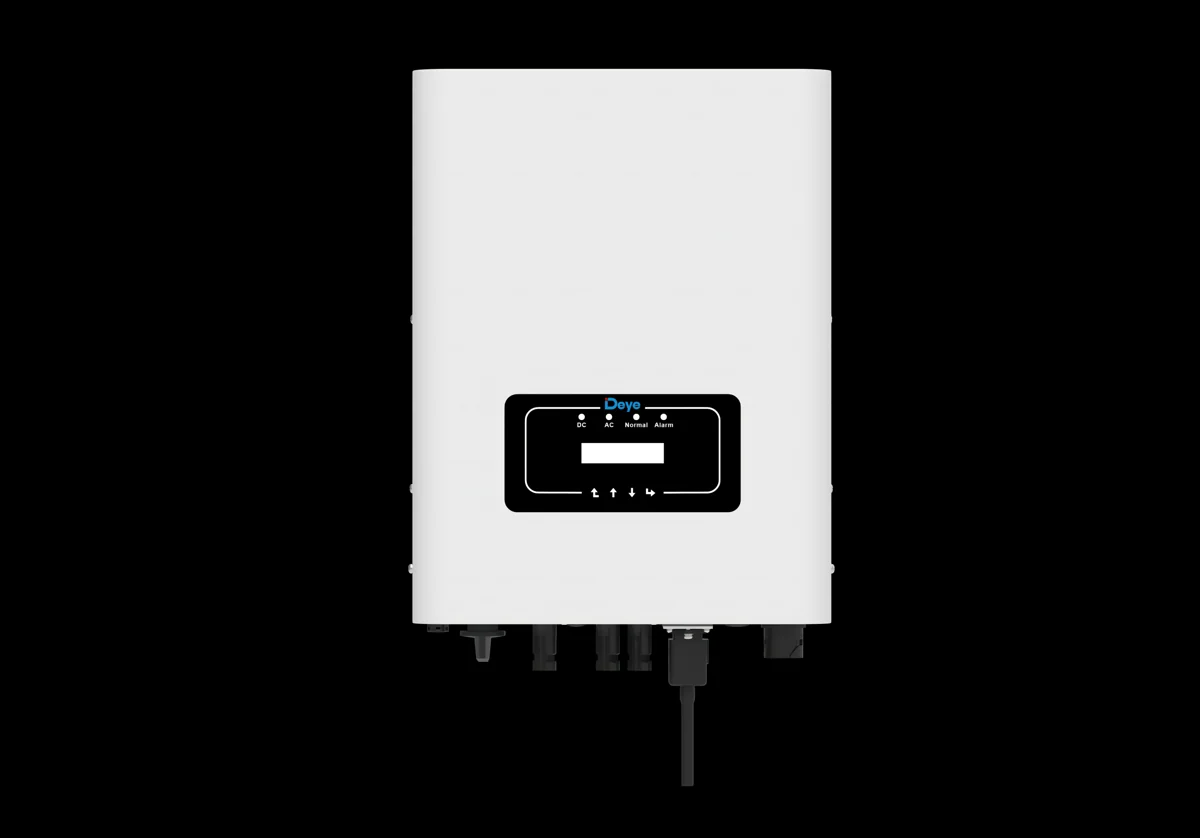

Deye SUN-15K-G05 network inverter, 15 kW, 3 phases
Deye SUN-15K-G05 is a 15 kW three-phase mains inverter. This is not a hybrid: no battery is needed, everything produced is fed into the network. Read more →
- 5-year warranty. Long-lasting protection, worry-free use.
- Without VAT Additional value added tax is not charged.
- Free delivery Fast local delivery
Deye SUN-15K-G05 is a 15 kW three-phase mains inverter. This is not a hybrid: no battery is needed, everything produced is fed into the network.
Such inverters are installed at facilities where the goal is to sell electricity at a "green tariff" and not to store it.
Solar part: up to 19.5 kW of panels, voltage up to 1000 V, MPPT range 200-850 V, starting voltage 250 V. Two MPPT trackers with a 1+2 scheme - that is, three strings, one on the first tracker and two on the second.
The output is three-phase, 220/380 V or 230/400 V, scheme 3L/N/PE. Nominal power 15 kW, maximum active 16.5 kW. Rated current 22.7 / 21.7 A.
Maximum efficiency 98.5%, European 97.5%, MPPT efficiency over 99%. Housing IP65, weight 15 kg, dimensions 333 × 472 × 202 mm. Reasonable cooling, noise up to 40 dB.
Zero export is supported — for cases when sharing to the network is prohibited. Warranty 5 years.
| Producer | Deye |
| Article | SUN-15K-G05 |
| Type | Network (string) inverter |
| Power | 15 kW |
| Number of phases | 3 |
| Max. active power | 16.5 kW |
| Max. PV capacity | 19,500 W |
| Max. PV voltage | 1000 V |
| MPPT range | 200–850 V |
| PV start voltage | 250 V |
| Number of MPPTs | 2 (scheme 1+2) |
| Max. PV current | 13 + 26 A |
| Output voltage | 220/380 V, 230/400 V |
| Connection diagram | 3L/N/PE |
| Network frequency | 50 / 60 Hz |
| Rated AC current | 22.7 / 21.7 A |
| Max. AC current | 25 / 23.9 A |
| Power factor | 0.8 leading – 0.8 lagging |
| Max. efficiency | 98.5% |
| European efficiency | 97.5% |
| MPPT efficiency | >99% |
| Protection class | IP65 |
| Topology | Transformerless |
| Noise level | <40 dB |
| Dimensions (W×H×D) | 333 × 472 × 202 mm |
| Weight | 15 kg |
| Guarantee | 5 years |
| Features | Zero export, VSG, anti-PID (option) |
| Series | G05 |
