LiTime 0% VAT 12V 140Ah Deep Cycle H190 Lithium Battery with Bluetooth - Motorhome Seat DIN H8 L5
LiFePO4 battery at 12.8 V and 140 Ah, useful energy 1792 Wh. Weight 12.96 kg, dimensions 358 × 177 × 189 mm, size DIN H8 L5 (group 49). Read more →
10%
Discount coupon from the manufacturer
Works on the "Buy from manufacturer" button. This coupon does not apply to AliExpress.
Enter the code in the cart on the manufacturer's website - the discount will be applied to the order.
- 5-year warranty. Long-lasting protection, worry-free use.
- Without VAT Additional value added tax is not charged.
- Free delivery Fast local delivery

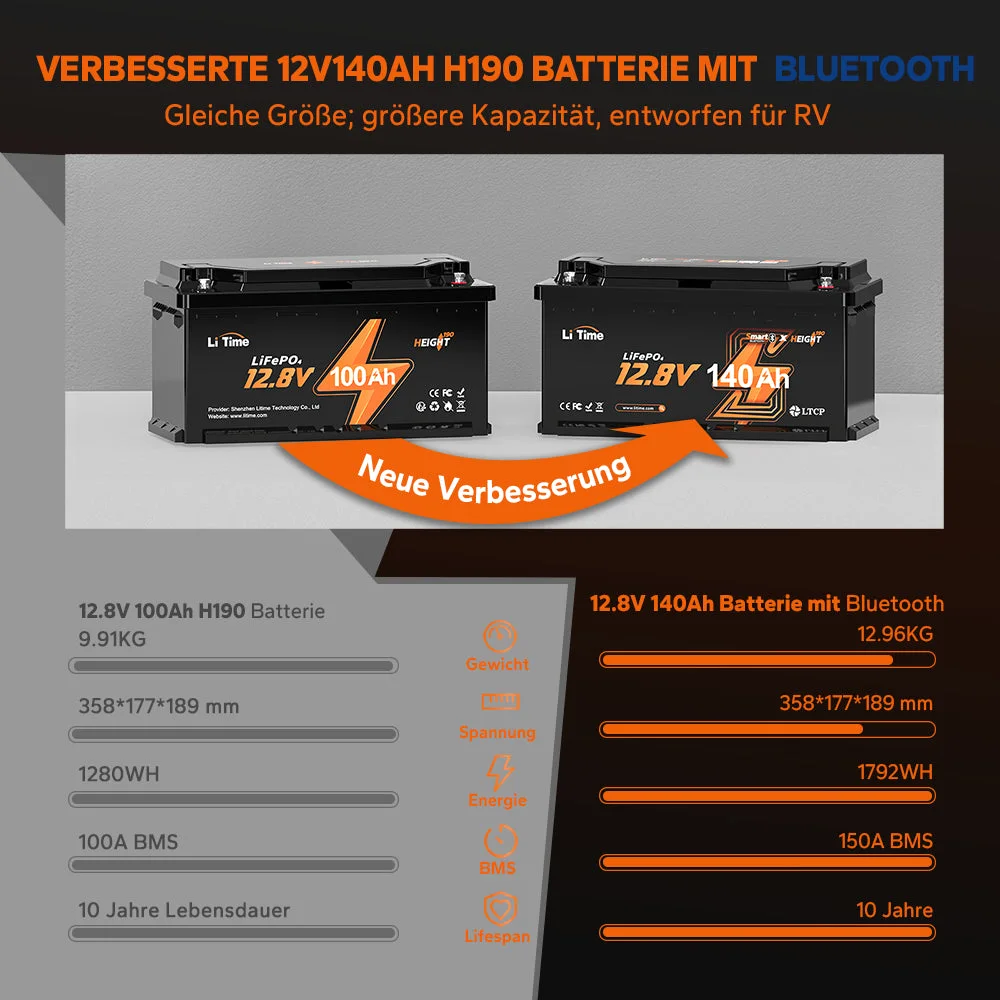

LiFePO4 battery at 12.8 V and 140 Ah, useful energy 1792 Wh. Weight 12.96 kg, dimensions 358 × 177 × 189 mm, size DIN H8 L5 (group 49).

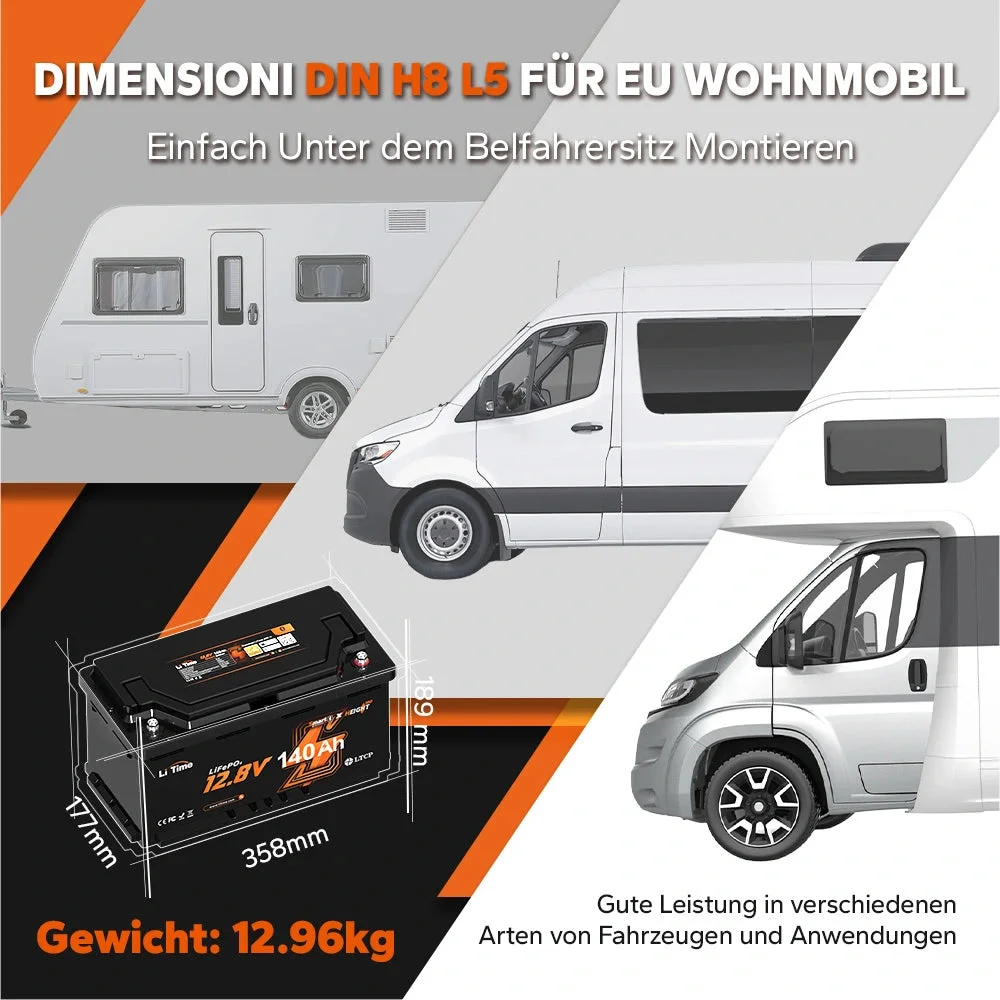

The battery is designed for installation under the seat in campers and vans. In terms of dimensions, it corresponds to the standard seat of many models, so there is no need to add anything.

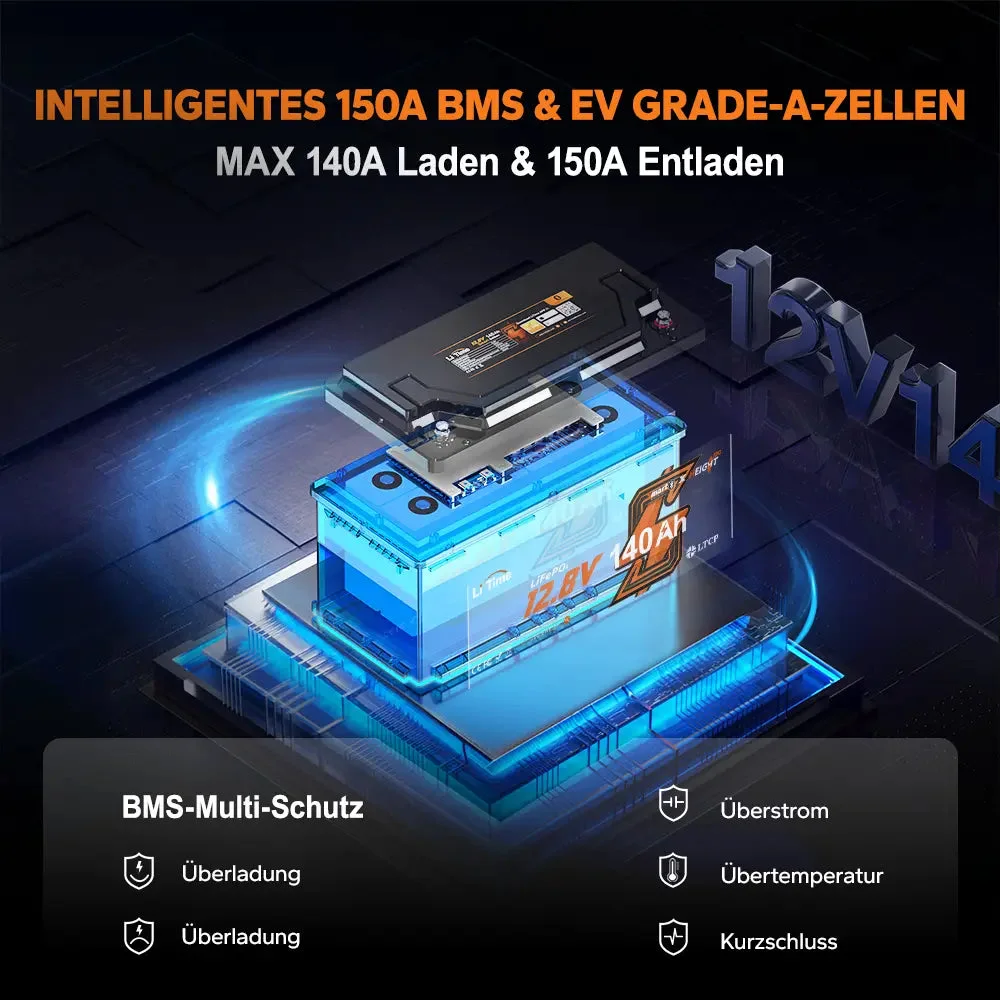

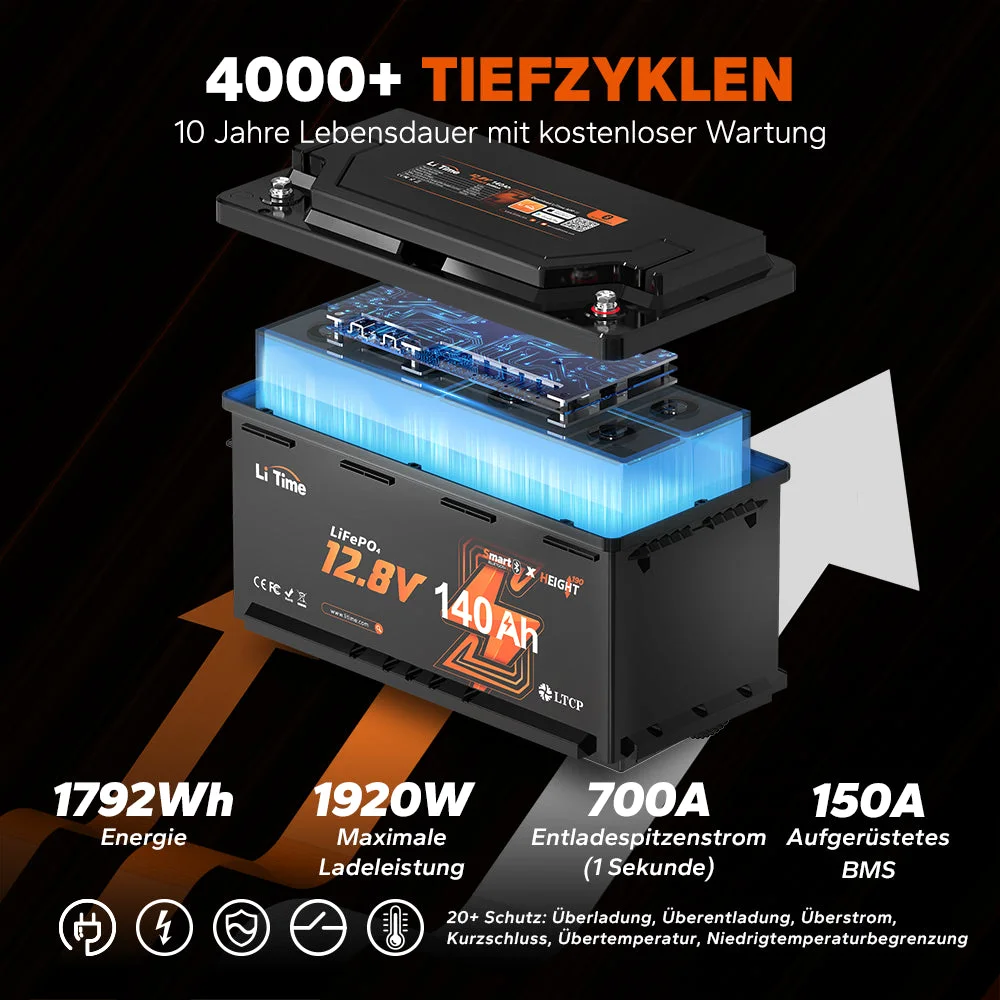

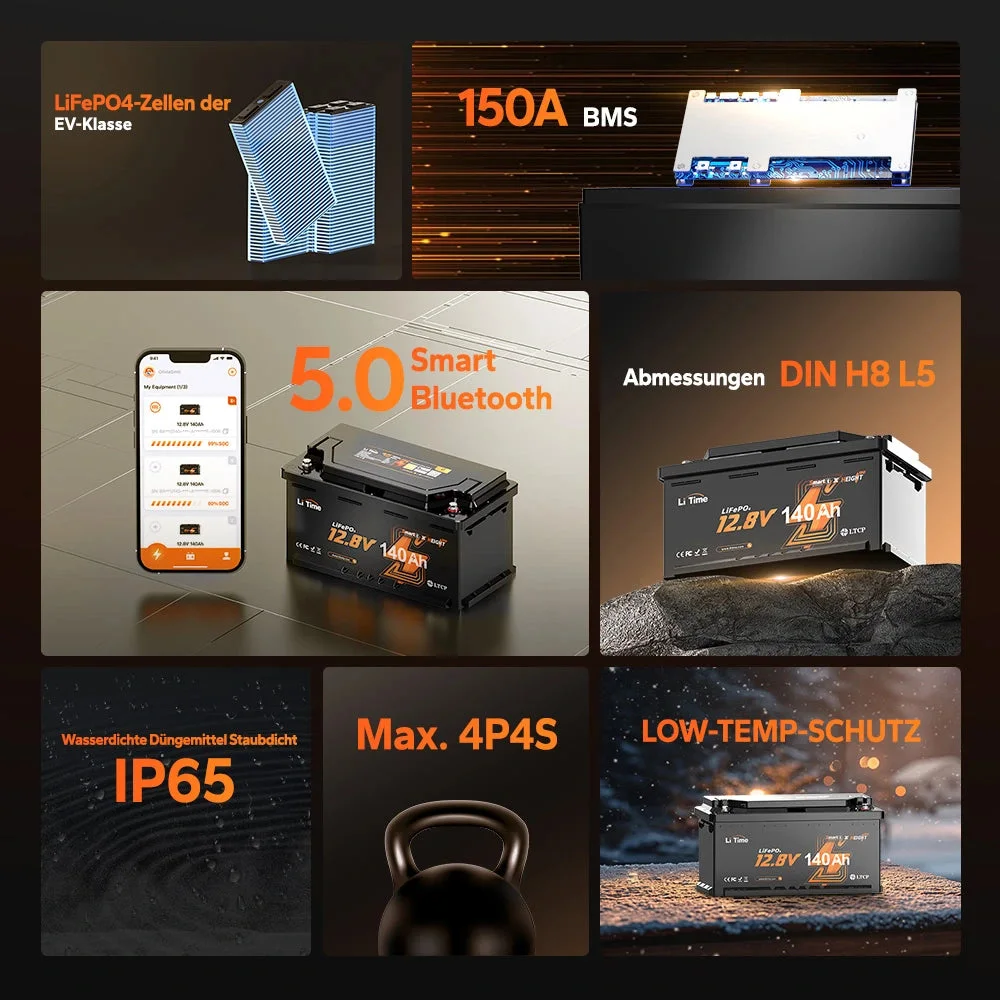

BMS for 150 A discharge and 140 A charge. Peak load 700 A for one second. The maximum charge power is 1920 W, the charge proceeds in three stages.

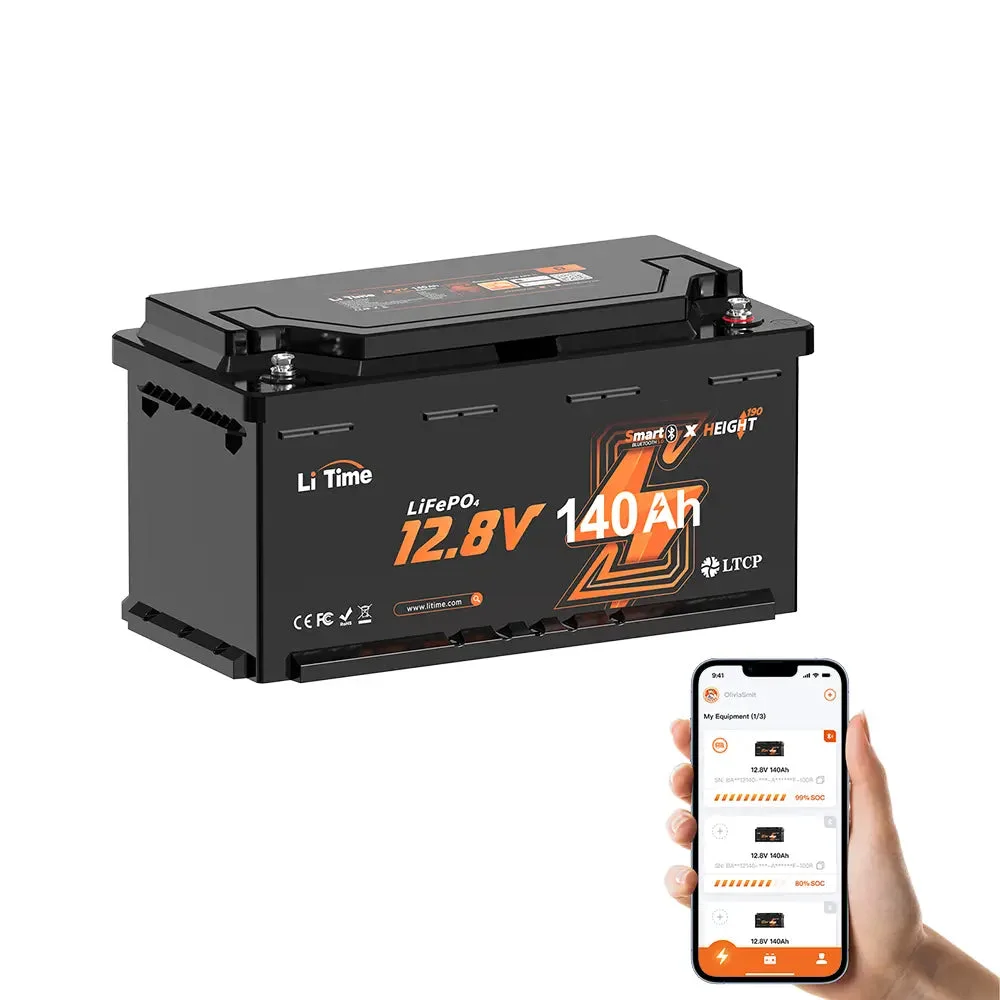

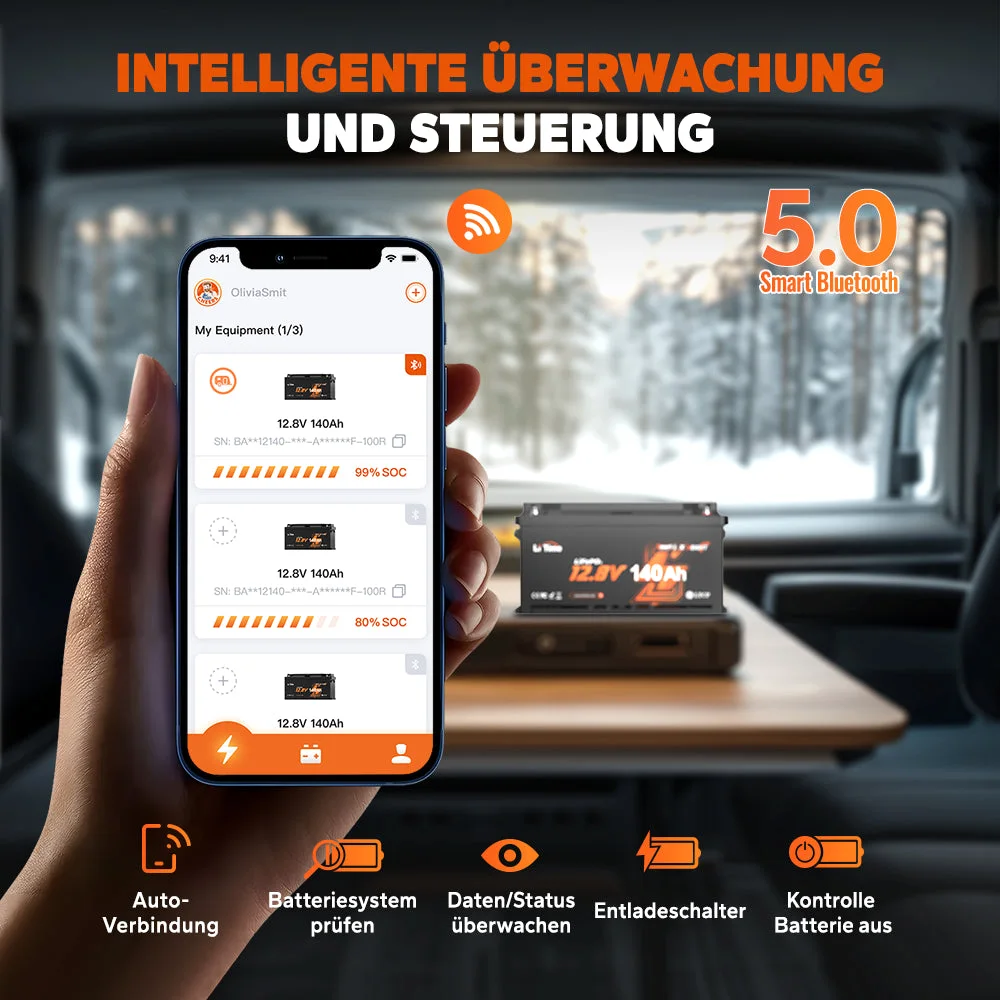

Bluetooth 5.0 provides access to charge level, voltage, current and temperature via the LiTime app. Allowed to collect up to 4P4S.

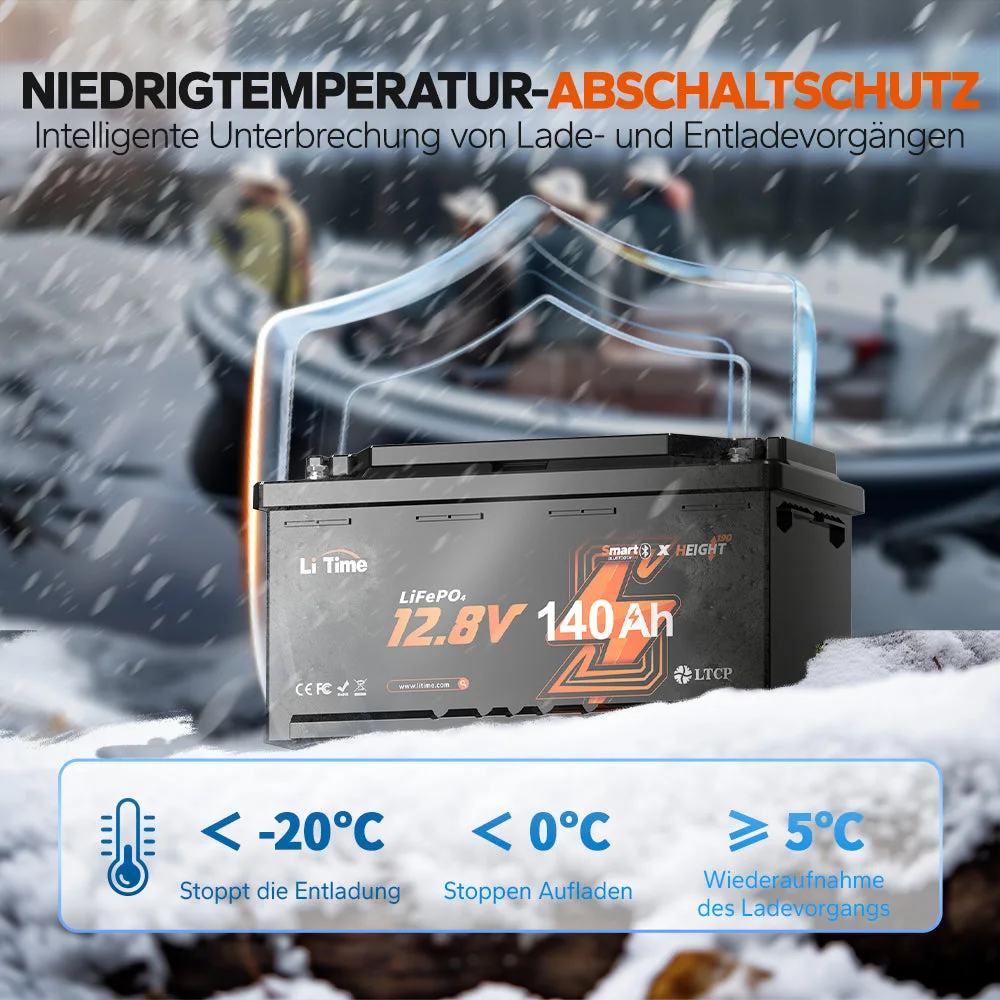

Charge below 0 °C is blocked, discharge below -20 °C, operation resumes from 5 °C. The housing is IP65 protected. Resource over 4000 cycles, 5-year warranty.
| Producer | LiTime |
| Article | L12V140-150-H190-BT-4-AC150-F-DE |
| Type | LiFePO4 battery |
| Nominal voltage | 12.8 V |
| Capacity | 140 A·h |
| Energy | 1792 Wh |
| Type size | DIN H8 L5 (group 49) |
| Maximum discharge current | 150 A (peak 700 A, 1 s) |
| Maximum charge current | 140 A |
| Maximum charge capacity | 1920 W |
| Assembly scheme | to 4P4S |
| Bluetooth | 5.0, LiTime app |
| Protection against low temperatures | charge below 0 °C, discharge below -20 °C |
| Protection class | IP65 |
| Resource | over 4000 cycles |
| Dimensions (L×W×H) | 358 × 177 × 189 mm |
| Weight | 12.96 kg |
| Guarantee | 5 years |
| Certificates | ECE R10, E24, CE, FCC, UN38.3 |
