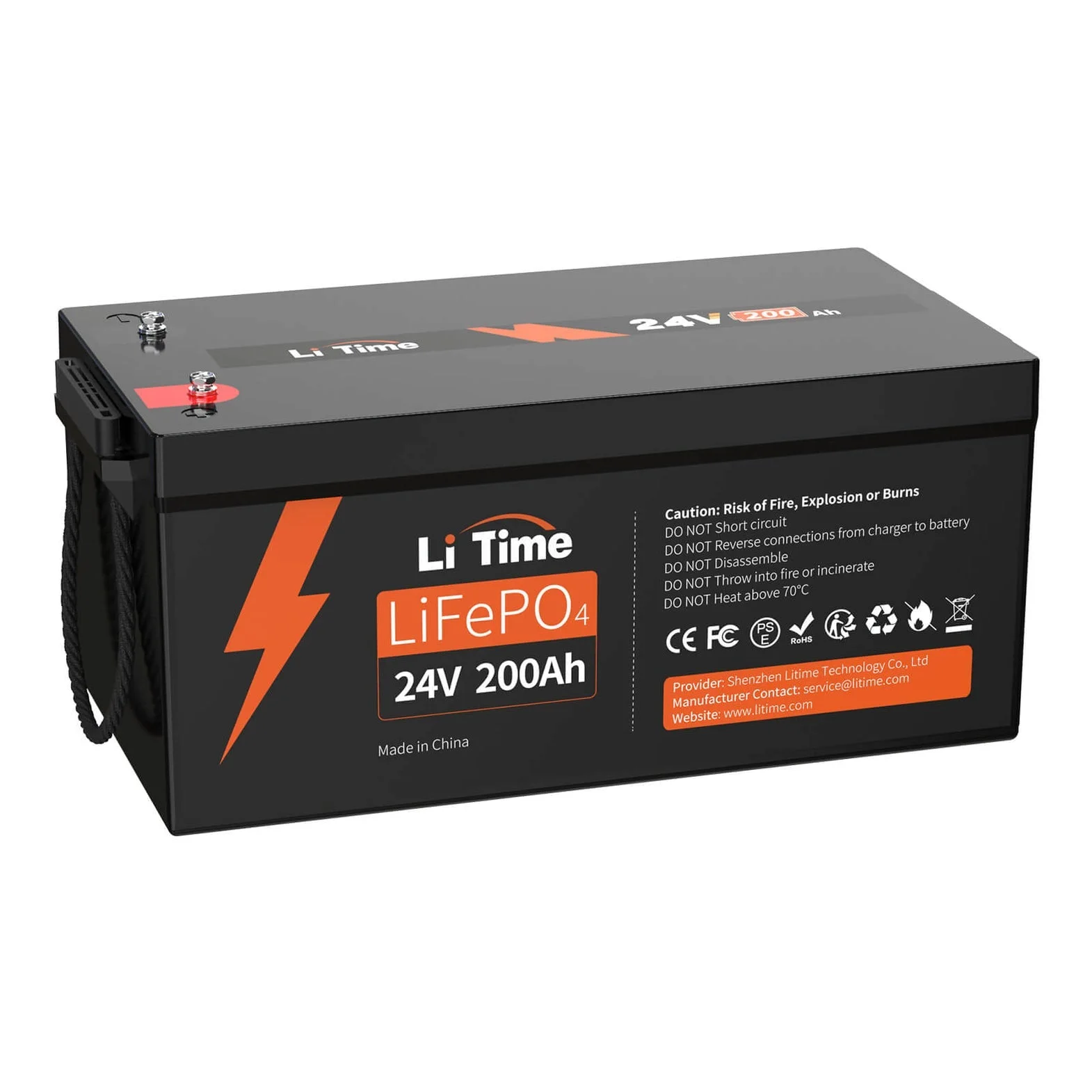

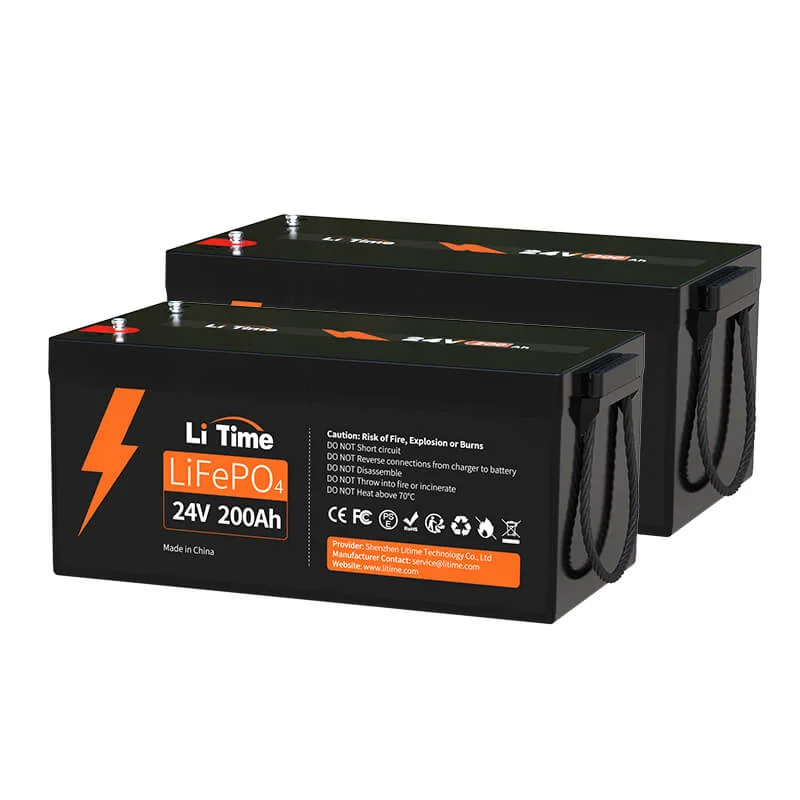

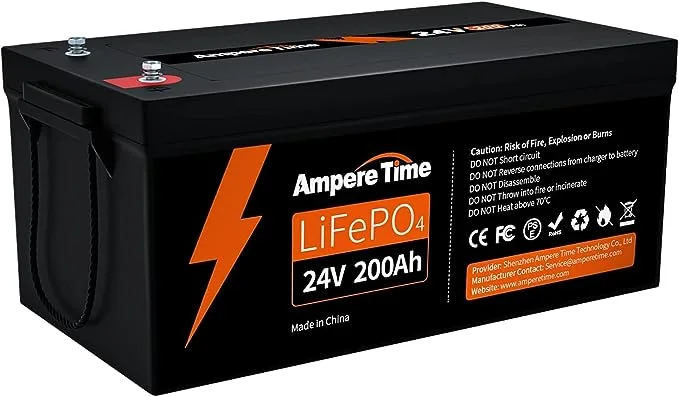

[Ukraine] LiTime 24v 200ah lithium battery LiFePo4 Ukraine

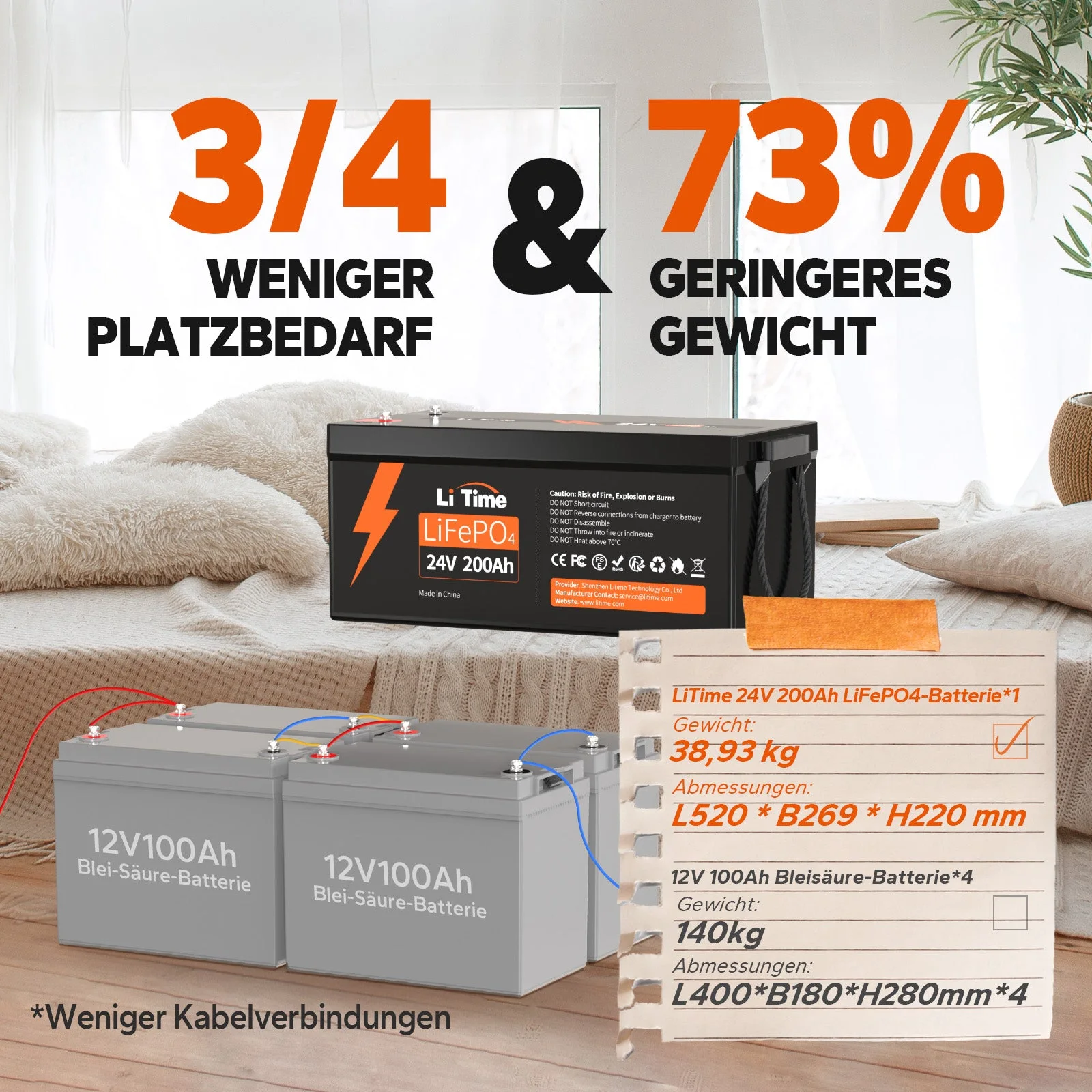

LiFePO4 battery at 25.6 V and 200 Ah, i.e. 5120 Wh of energy. The case corresponds to the standard size of BCI Group 8D, dimensions 520 × 269 × 220 mm, weight 38.93 kg.

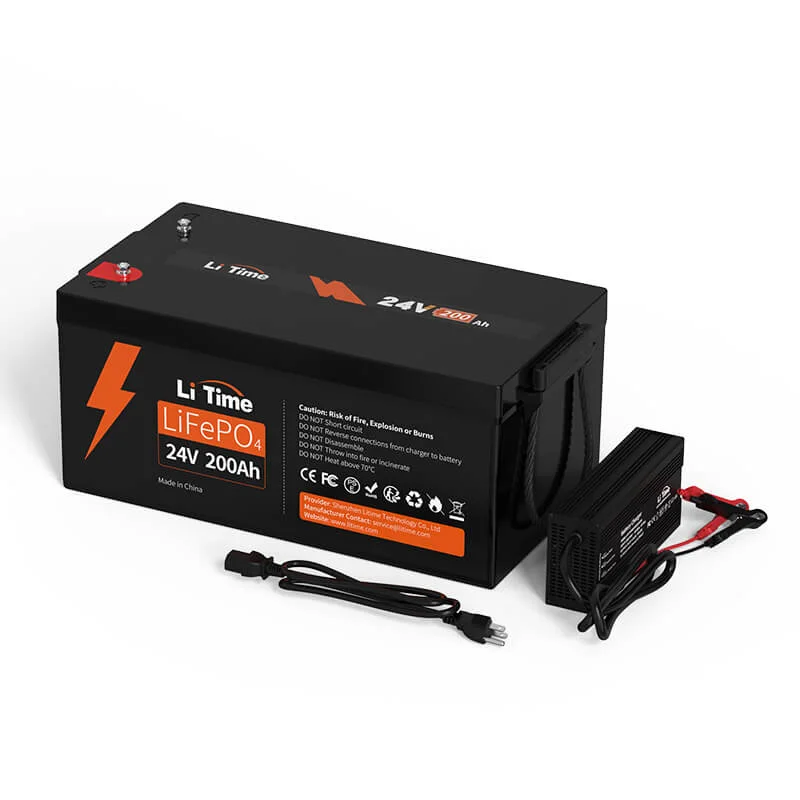

The BMS holds 200A of discharge and 100A of charge, so the continuous power reaches 5120W. The charge voltage is 29.2V, for this a LiTime 29.2V charger is suitable.

The system can be expanded: up to 4P2S, i.e. 51.2 V 800 A·h, about 41 kWh. Protection class IP65.

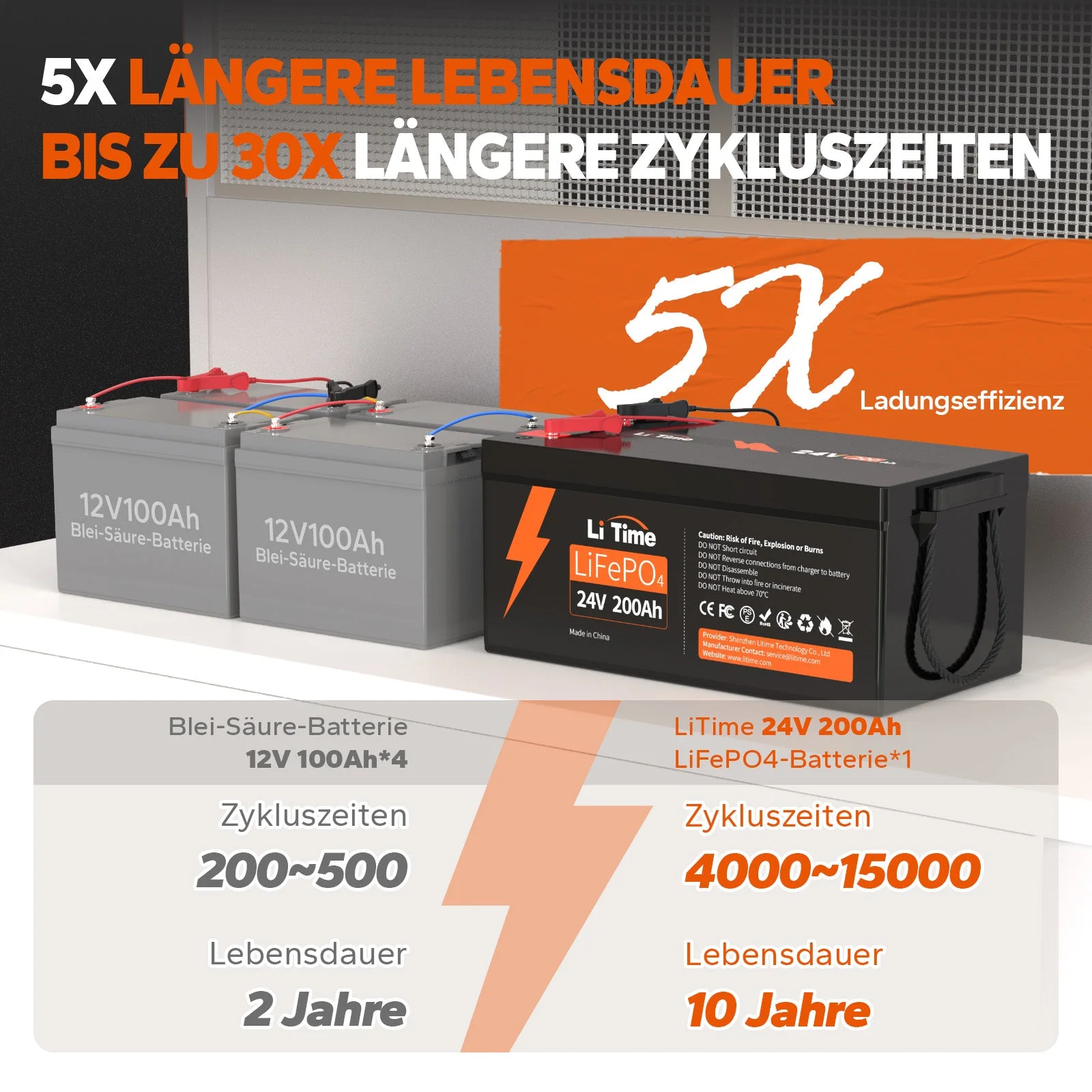

The declared resource is 4000–15000 cycles, this is up to 10 years of service depending on the mode. Self-discharge is no more than 3% per month, so the battery can be left in storage.

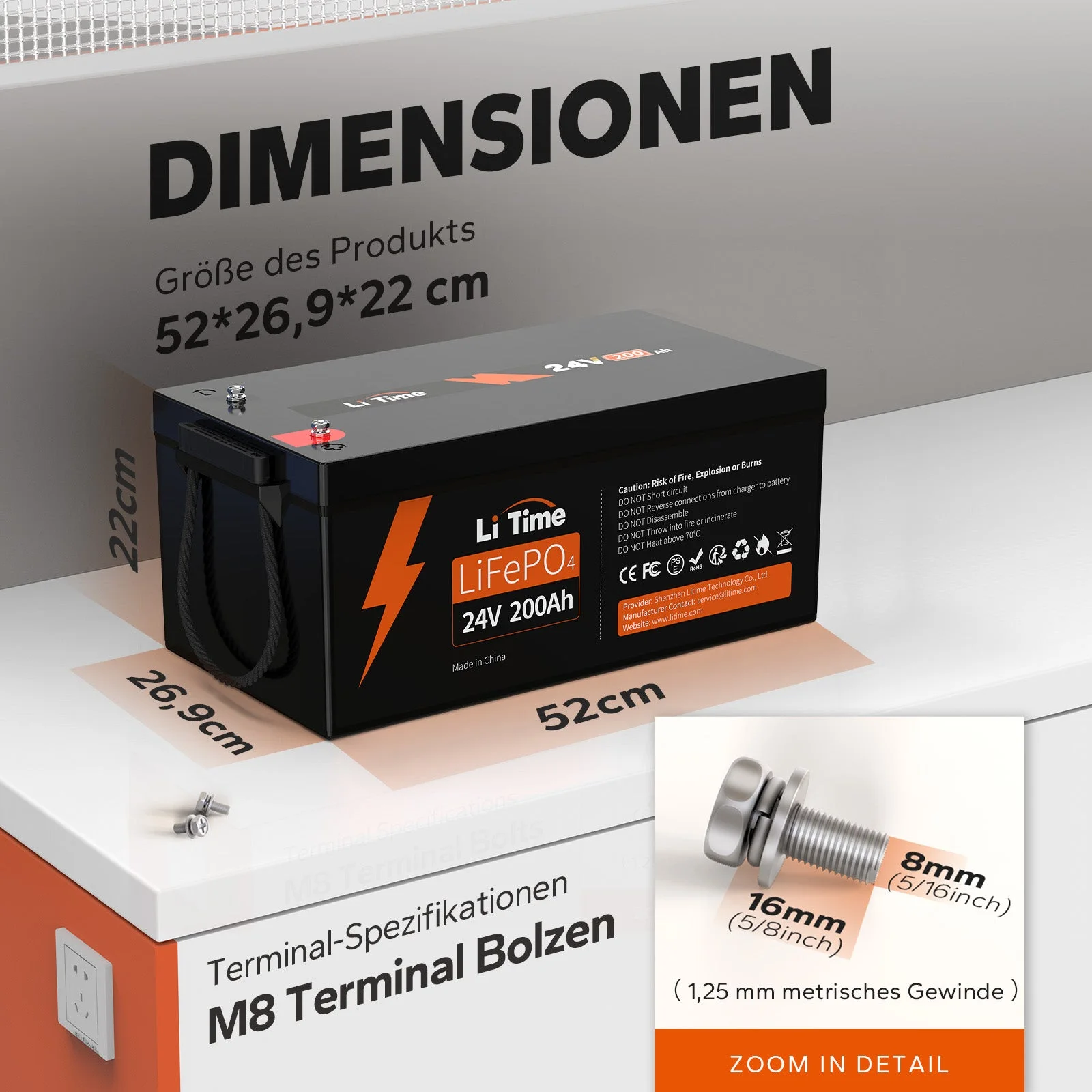

M8 terminals for screws 8 × 16 mm. Certificates UL1973, FCC, CE, RoHS, UN38.3. Warranty 5 years.
