LiTime 30A MPPT 12V/24V Solar Charge Controller with Built-in Bluetooth
30A MPPT controller with automatic detection of 12V or 24V system voltage. The maximum power of the solar panels is 450W for a 12V system and 900W for a 24V system. Nominal charge current 30 A, load current 20 A. Read more →
10%
Discount coupon from the manufacturer
Works on the "Buy from manufacturer" button. This coupon does not apply to AliExpress.
Enter the code in the cart on the manufacturer's website - the discount will be applied to the order.
- 5-year warranty. Long-lasting protection, worry-free use.
- Without VAT Additional value added tax is not charged.
- Free delivery Fast local delivery

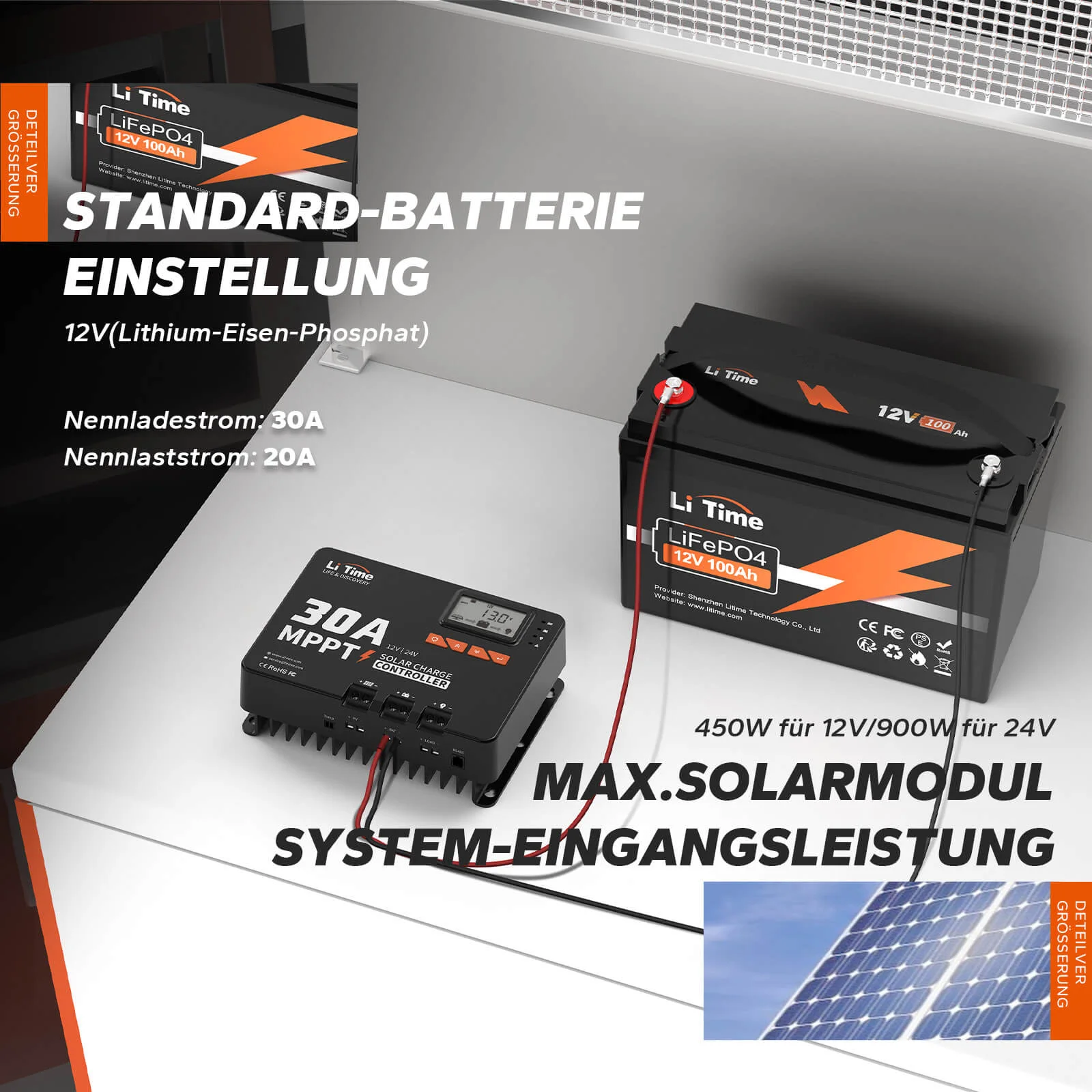

30A MPPT controller with automatic detection of 12V or 24V system voltage. The maximum power of the solar panels is 450W for a 12V system and 900W for a 24V system. Nominal charge current 30 A, load current 20 A.

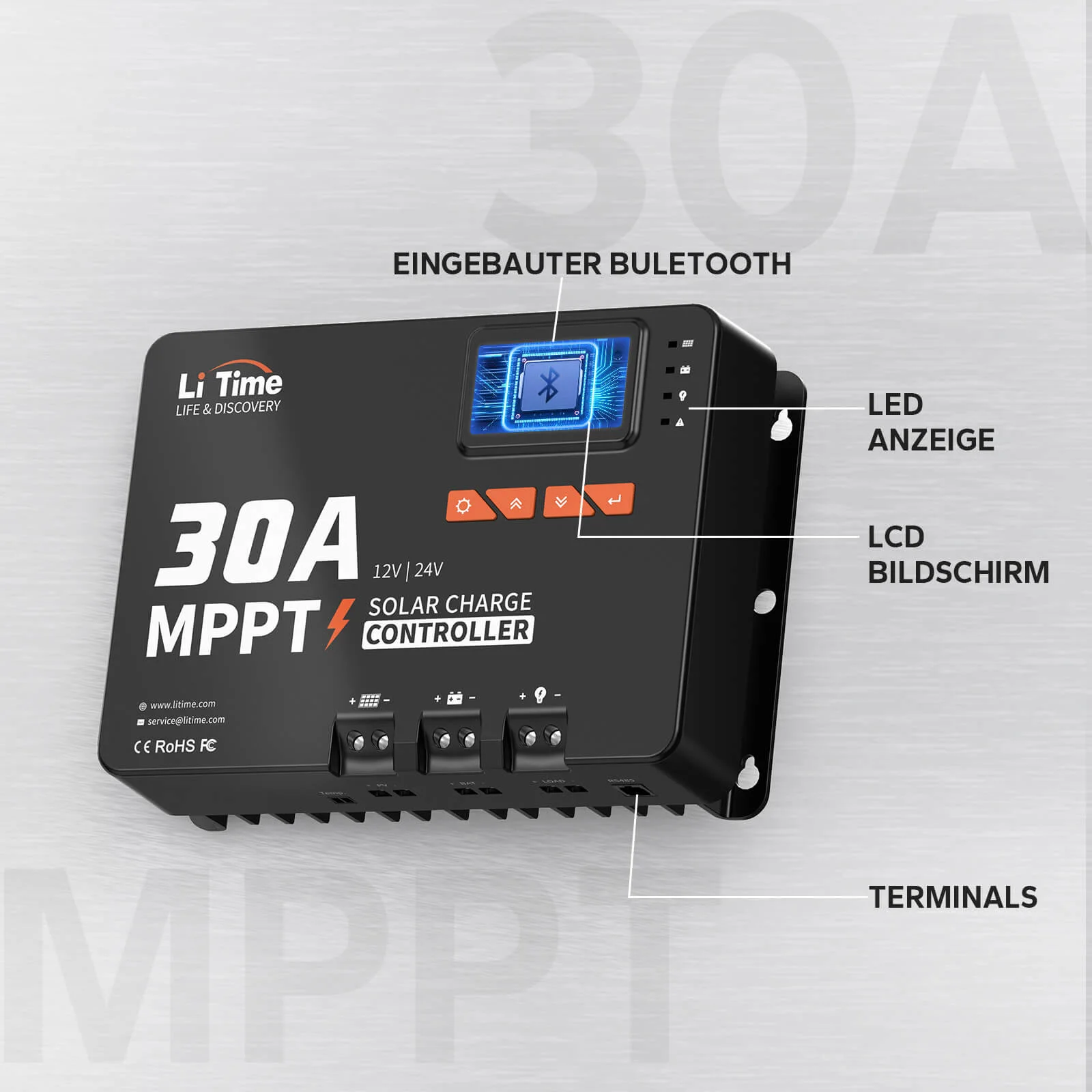

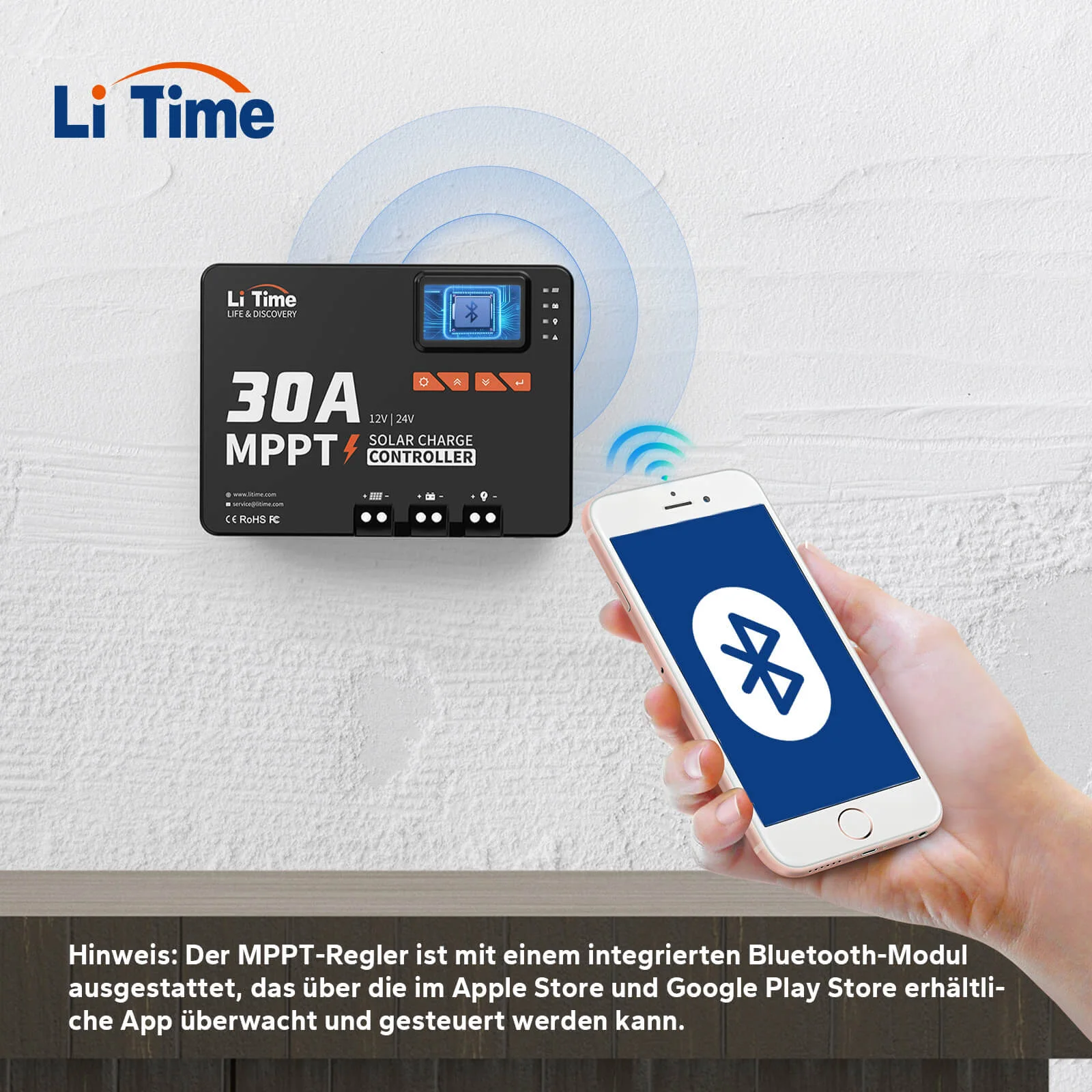

The controller has built-in Bluetooth and works with the LiTime mobile application, so the parameters are visible from the phone. The body has a liquid crystal display, LED indicators and four buttons for setting.

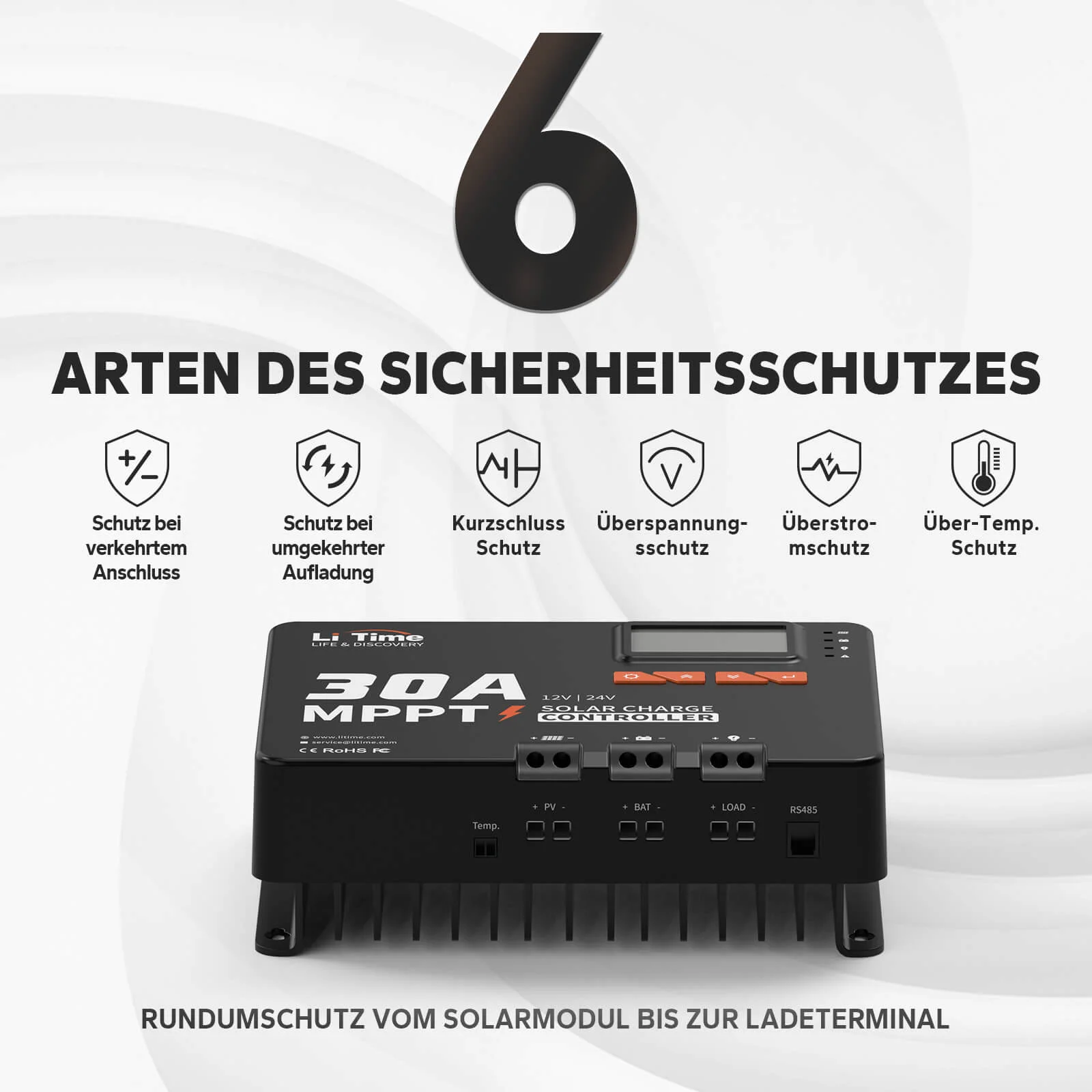

Six types of protection are claimed: against incorrect connection, reverse charge, short circuit, overvoltage, overload and overheating.

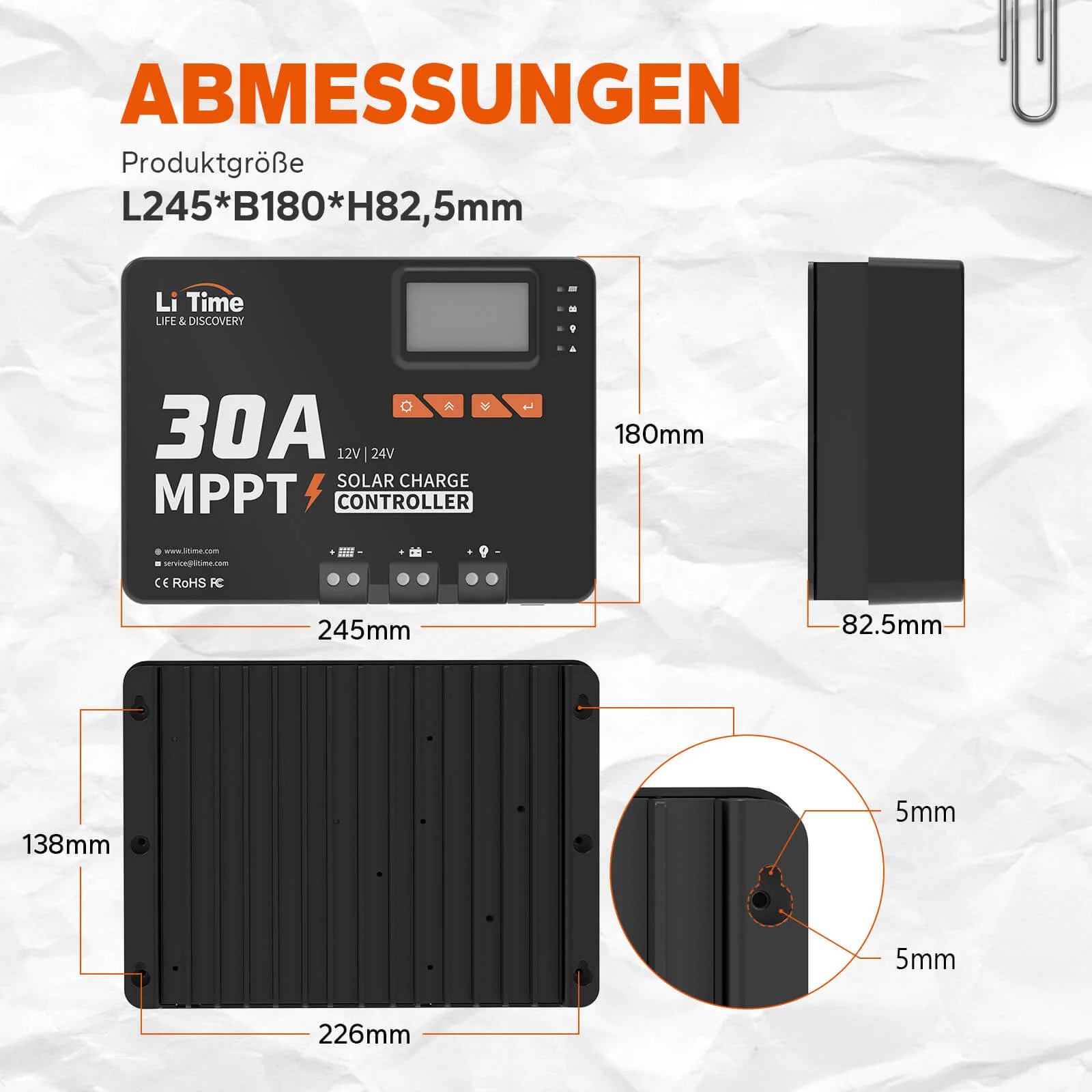

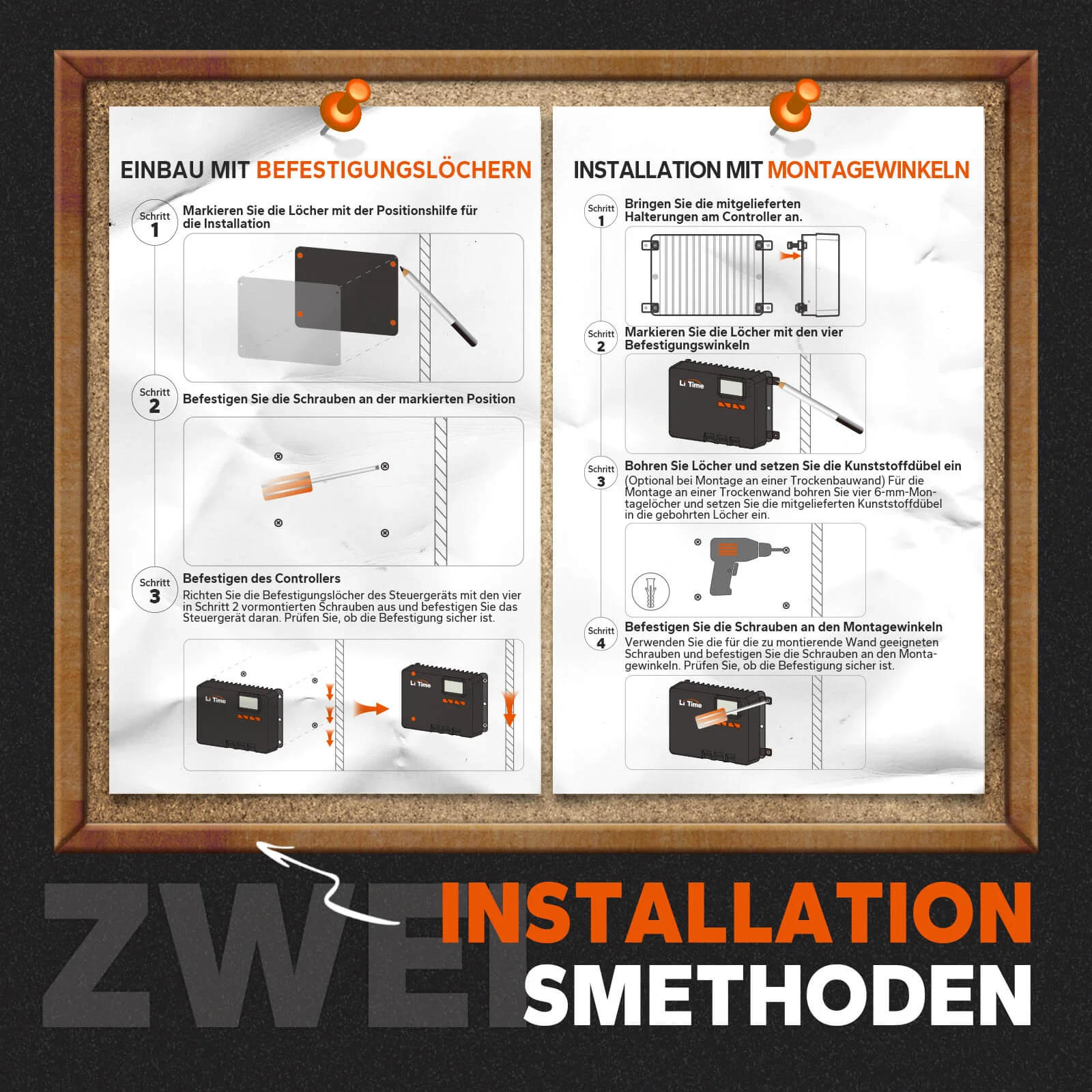

The dimensions are 245 × 180 × 82.5 mm, the mounting holes are located at a distance of 226 × 138 mm. There are two ways of fastening: through holes or through complete corners.

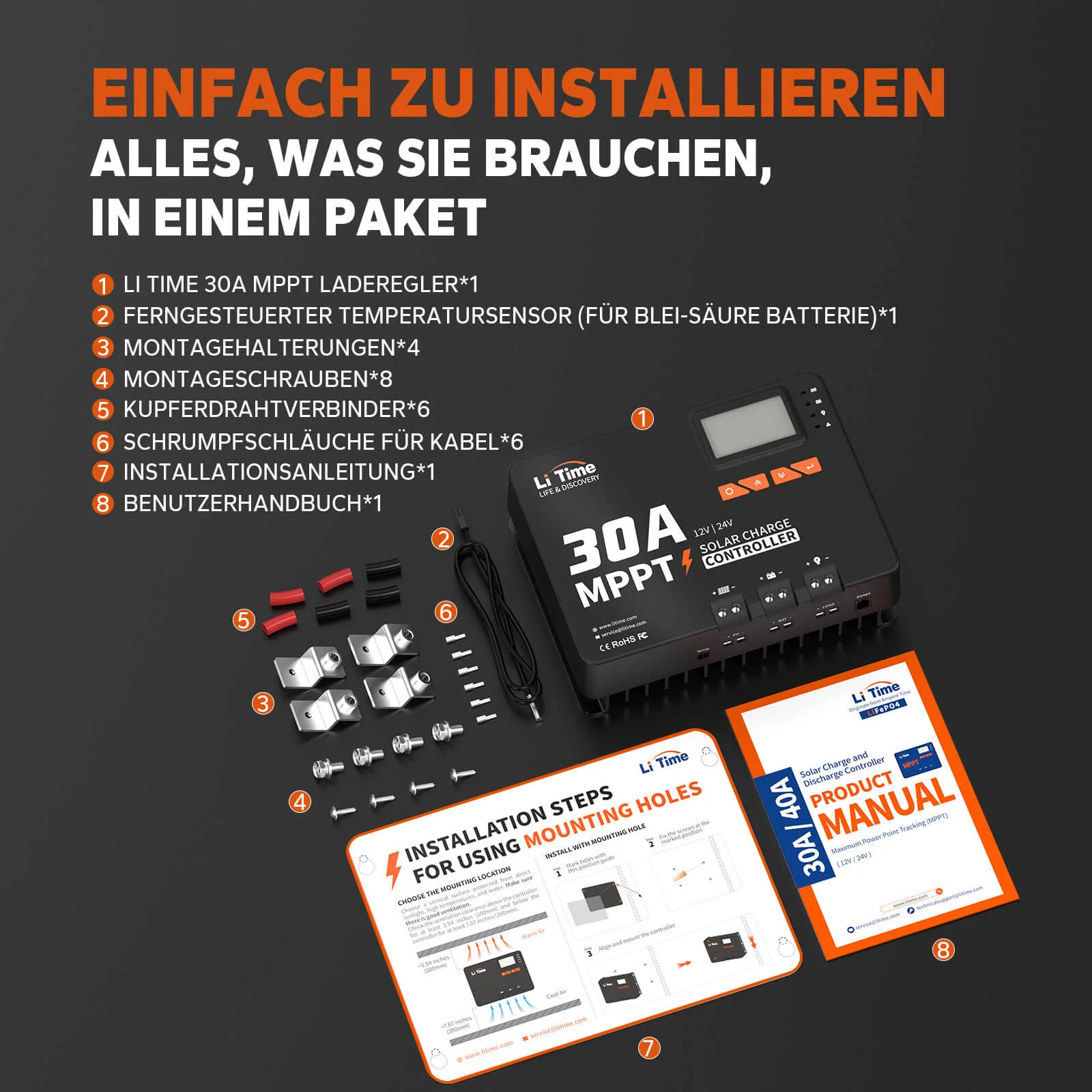

The kit includes a remote temperature sensor, four angles, eight screws, six copper connectors, heat shrink tubes and two manuals.
| Producer | LiTime |
| Article | L24V30A-MPPT-BT-B1-DE |
| Type | MPPT solar panel charge controller |
| Input voltage (battery) | 12/24 V, automatic |
| Nominal charge current | 30 A |
| Rated load current | 20 A |
| The maximum power of the panels | 450 W (12 V), 900 W (24 V) |
| Bluetooth | built-in, LiTime app |
| Display | LCD, 4 control buttons |
| Indication | LEDs |
| Protection | wrong connection, reverse charge, short circuit, overvoltage, overload, overheating |
| Temperature sensor | remote, included |
| Assembling | holes 226 × 138 mm or corners |
| Dimensions (L×W×H) | 245 × 180 × 82.5 mm |
| Complete set | controller, temperature sensor, angles ×4, screws ×8, connectors ×6, heat shrink ×6, manuals |
| Certificates | CE, RoHS, FC |
