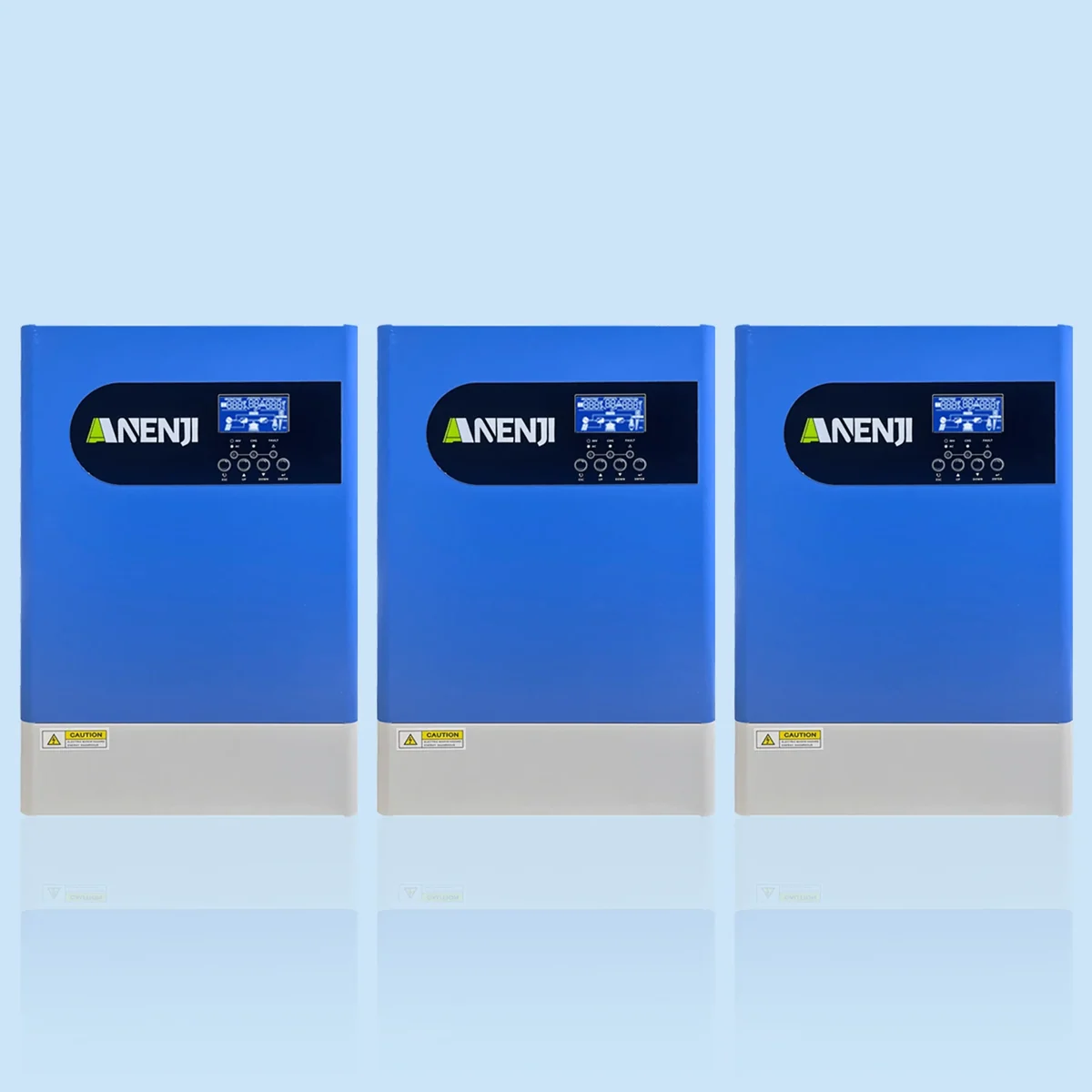

Anenji hybrid inverter, 18.6 kW, 48 V, 3 phases, up to 12 pcs. in parallel, Wi-Fi
Hybrid inverter ANJ-HHP-II-18.6KP-WIFI for 18.6 kW, battery 48 V, output 230 V. Read more →
- 5-year warranty. Long-lasting protection, worry-free use.
- Without VAT Additional value added tax is not charged.
- Free delivery Fast local delivery
Hybrid inverter ANJ-HHP-II-18.6KP-WIFI for 18.6 kW, battery 48 V, output 230 V.
Up to 12 blocks are combined in parallel, together up to 223 kW. One block gives 18.6 kW per phase.
The maximum no-load voltage at the PV input is 500 V.
Works without a battery and has the function of activating the lithium battery if the BMS has gone into protection.

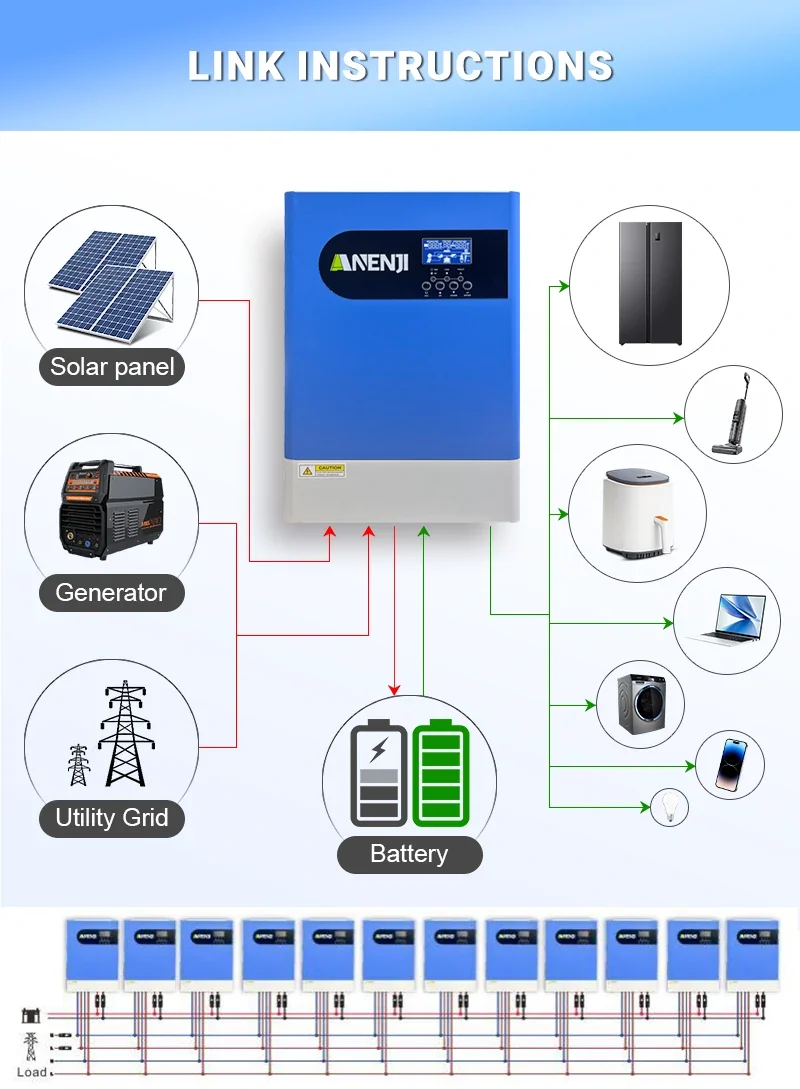

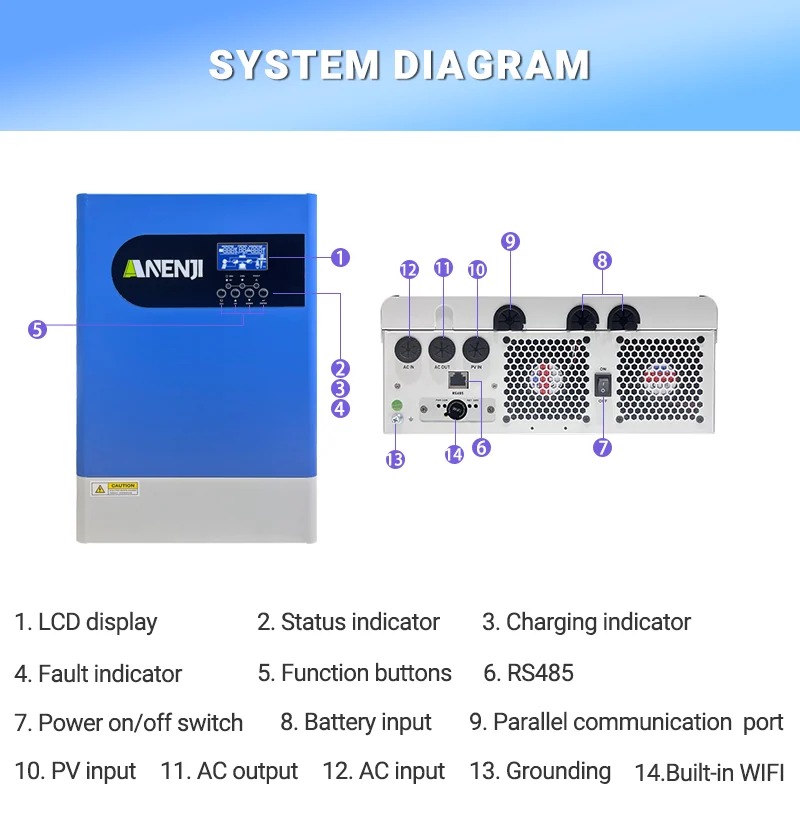

Bottom connectors: 230 V input and output, PV input, battery terminals, ground, RS485, parallel port. There are four indicators on the LCD panel.
Wi-Fi is built-in. Stocked in Germany, fast delivery.
18.6kW requires a 48V battery with a serious discharge current, so a single 100Ah unit won't work here: you need at least 300-400Ah.
| Producer | Anenji |
| Article | ANJ-HHP-II-18.6KP-WIFI |
| Type | Hybrid inverter |
| Power | 18.6 kW |
| Capacity | 18600 W |
| Battery voltage | 48 V |
| Voltage type | Low voltage (48 V) |
| Output voltage | 230 V AC, 1 phase |
| Max. PV voltage | 500 V DC |
| Parallel work | up to 12 pcs. (up to 223 kW) |
| Work without batteries | Yes |
| Activation of the lithium battery | Yes |
| Ports | RS485, parallel port, ground |
| Indication | LCD, status / charge / error |
| Connection | Wi-Fi (built-in) |
| Composition | Germany (fast delivery) |
